Suncor Stainless Steel Anchor Base with Stud, 1/4 in

Suncor Stainless Steel Anchor Base with Stud, 1/4 in

SKU:STA-783c24

Premium grade 316 stainless steel Anchor Base with Stud for versatile and secure lifting applications.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Suncor Stainless Steel Anchor Base with Stud, 1/4 in

Suncor Stainless Steel Anchor Base with Stud, 1/4 in

$24.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Anchor Base with Stud, 1/4 in

Suncor Stainless Steel Anchor Base with Stud, 1/4 in

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

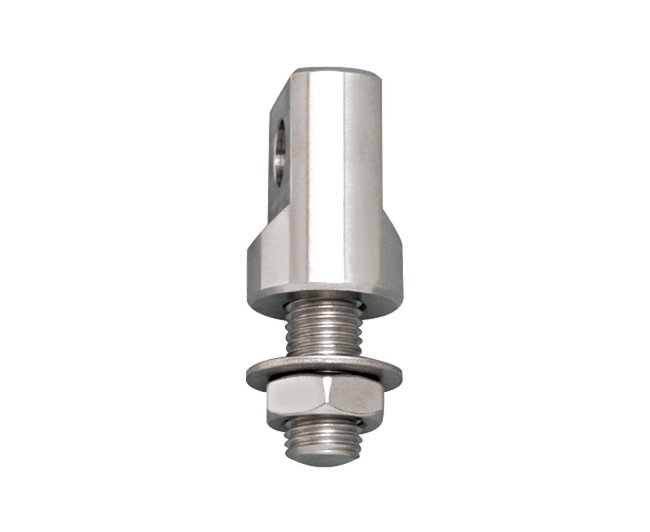

The Suncor Stainless Steel Anchor Base with Stud is a high-quality hoist assembly component designed for secure lifting applications. Crafted from grade 316 stainless steel, it offers exceptional corrosion resistance and durability for long-lasting performance. This Anchor Base accommodates various shackle types and comes with a threaded rod, washer, and nut for convenient installation. It features a 180-degree pivoting shackle, providing flexibility and a full range of motion. Ideal for attaching lifting points to objects lacking natural connections, this precision-machined base ensures reliable and safe lifting operations across a wide range of load capacities.

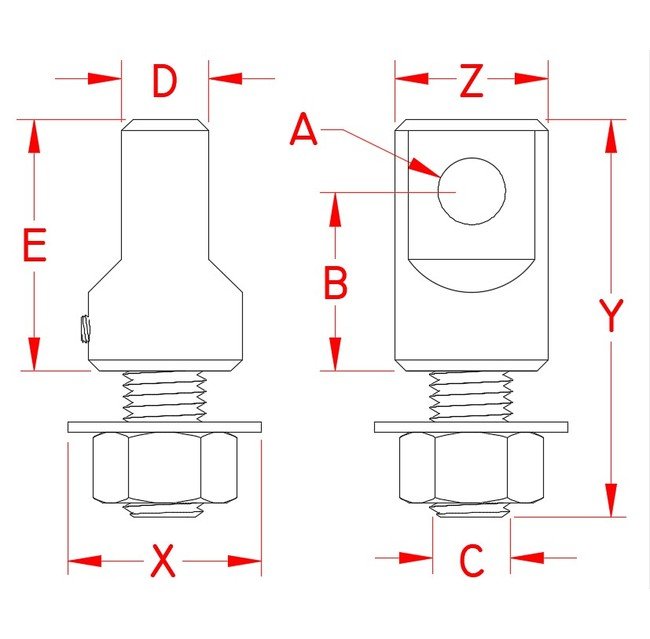

Product Specifications

Specifications Dimension A
0.31 in
Specifications Dimension B
1.00 in
Specifications Dimension C
3/8"-16
Specifications Dimension D
0.45 in
Specifications Dimension E
1.38 in
Specifications Dimension X
0.88 in
Specifications Dimension Y
2.02 in
Specifications Dimension Z
0.75 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Size
1/4 in
Specifications Suncor Exclusive
Yes
Specifications Weight
0.16 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
332722
PSC
5307
