Suncor Stainless Steel Anchor Base with Stud 5/8 in

Suncor Stainless Steel Anchor Base with Stud 5/8 in

SKU:STA-cb2969

Premium stainless steel anchor base with stud for secure lifting applications up to 4,000 lb WLL.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor Stainless Steel Anchor Base with Stud 5/8 in

Suncor Stainless Steel Anchor Base with Stud 5/8 in

$29.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Anchor Base with Stud 5/8 in

Suncor Stainless Steel Anchor Base with Stud 5/8 in

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

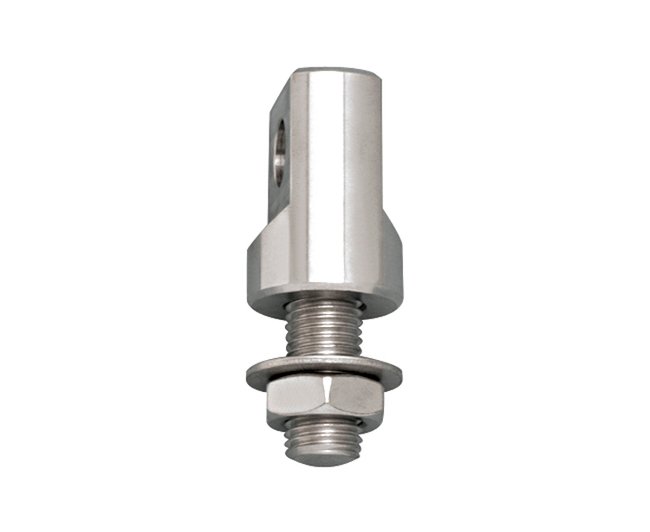

The Suncor Stainless Steel Anchor Base with Stud is a premium hoisting solution featuring grade 316 stainless steel construction for exceptional corrosion resistance and durability. This kit includes the anchor base, threaded rod, washer, and nut, designed to securely attach lifting points to various objects. With a 4,000 lb Working Load Limit (WLL) and precision machined fabrication, it ensures reliable performance in diverse lifting applications. The 180-degree pivoting shackle and set screw provide versatility and secure positioning for optimized functionality.

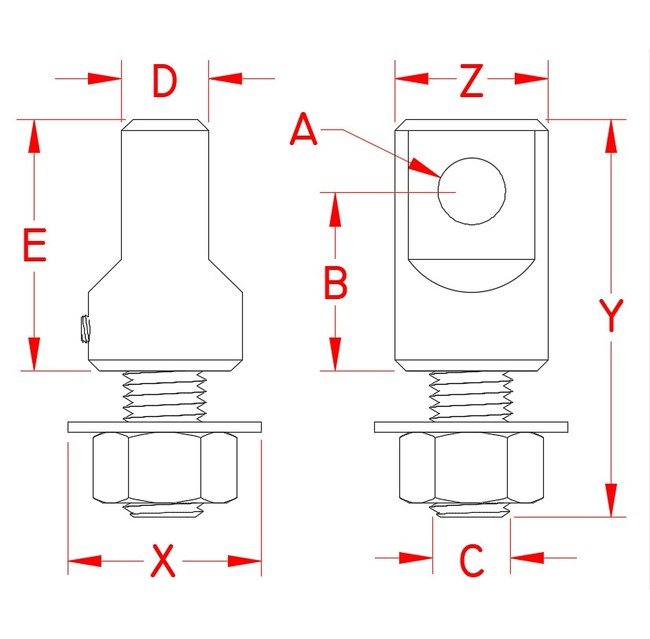

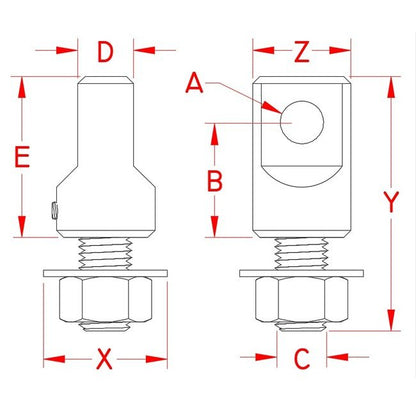

Product Specifications

Specifications Dimension A
0.75 in
Specifications Dimension B
1.86 in
Specifications Dimension C
7/8"-9
Specifications Dimension D
1.01 in
Specifications Dimension E
2.67 in
Specifications Dimension X
2.00 in
Specifications Dimension Y
4.11 in
Specifications Dimension Z
1.75 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Size
5/8 in
Specifications Suncor Exclusive
Yes
Specifications Weight
1.71 lb
Specifications Working Load Limit Wll
4,000 lb
CAGE
1CXX6
NAICS
332722
PSC
5307
