Suncor Stainless Steel Anchor Shackle

Suncor Stainless Steel Anchor Shackle

SKU:STA-e4aad1

High-quality Suncor Stainless Steel Anchor Shackle for saltwater use. ASME, Fed Spec, MIL-DTL compliant. Working Load Limit: 8,000 lb.

Regular price $54.99
Regular price Sale price $54.99
Sale

Initiate Order

Suncor Stainless Steel Anchor Shackle

Suncor Stainless Steel Anchor Shackle

$54.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Anchor Shackle

Suncor Stainless Steel Anchor Shackle

$54.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

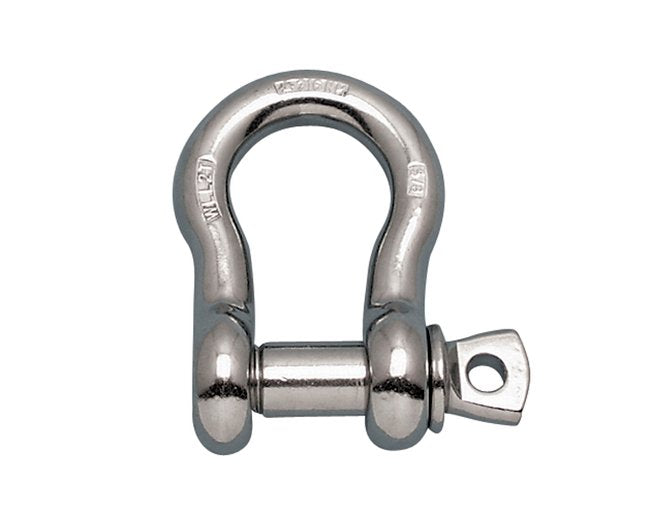

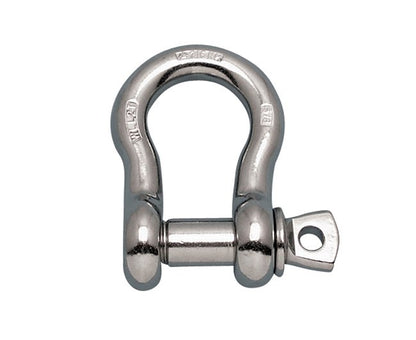

The Suncor Stainless Steel Anchor Shackle is crafted from high-grade 316-NM stainless steel, ensuring exceptional durability in saltwater environments. Featuring a robust oversize screw pin and a drop-forged construction, this anchor shackle boasts a working load limit of 8,000 lb. Compliant with ASME B30.26-2010, Fed Spec RR-C-271, MIL-DTL-32655, and Type IVA standards, this shackle is ideal for connecting anchors to chains with reliability and precision.

Product Specifications

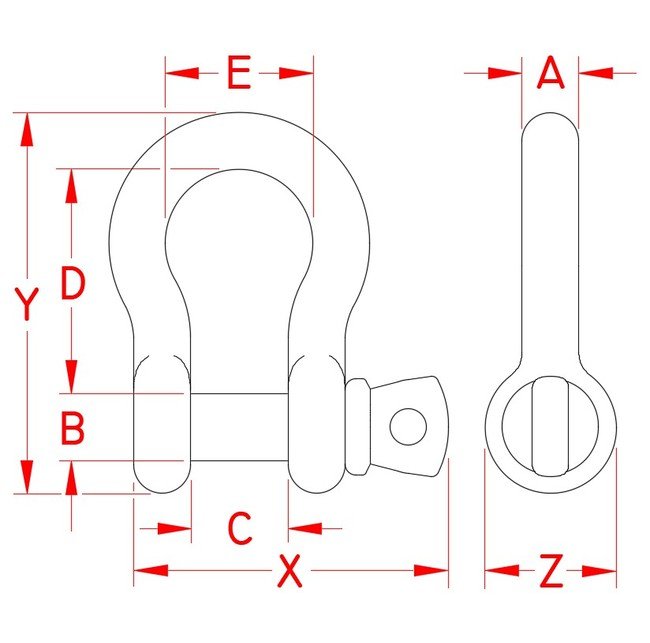

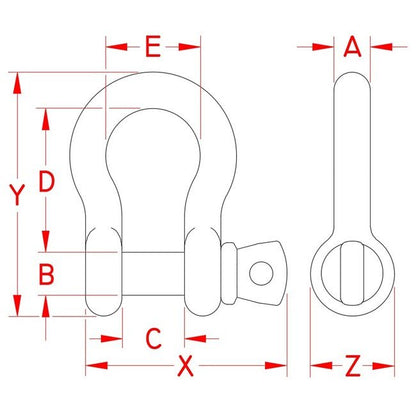

Specifications Dimension A
7/8 in
Specifications Dimension B
1.00 in
Specifications Dimension C
1.48 in
Specifications Dimension D
3.30 in
Specifications Dimension E
2.20 in
Specifications Dimension X
5.75 in
Specifications Dimension Y
4.78 in
Specifications Dimension Z
1.92 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
3.23 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
