Suncor Stainless Steel Anchor Shackle

Name: Suncor Stainless Steel Anchor Shackle
Brand: Suncor Stainless, Inc.
SKU: STA-7fa82a
Price: 14.99 USD
Availability: OutOfStock

SKU:STA-7fa82a

Secure your maritime connections with the Suncor Stainless Steel Anchor Shackle - ASME, Fed Spec RR-C-271 compliant, 650lb WLL, saltwater resistant.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

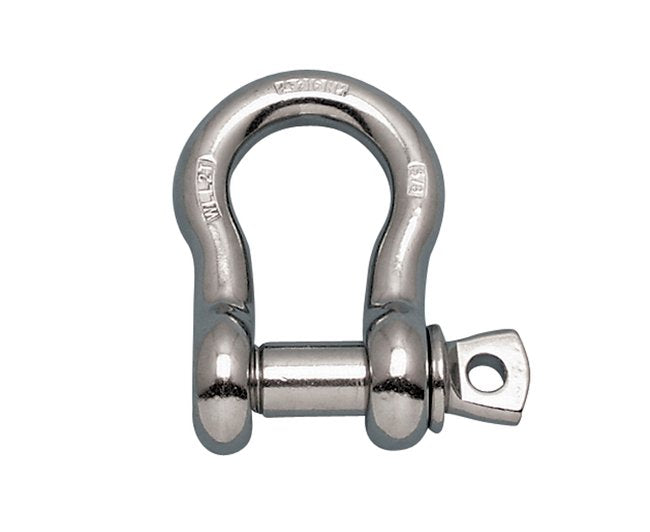

The Suncor Stainless Steel Anchor Shackle, crafted from 316-NM stainless steel, is a robust fastening solution designed for maritime environments, meeting ASME, Fed Spec RR-C-271, MIL-DTL-32655 standards. With a 650 lb Working Load Limit (WLL), drop-forged for durability, this anchor shackle ensures secure connections between anchors and chains. Saltwater resistant, Suncor exclusive design.

Product Specifications

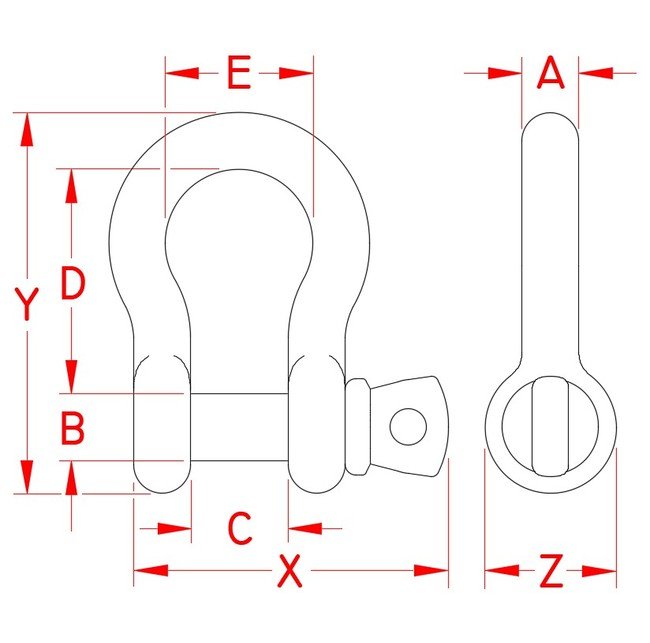

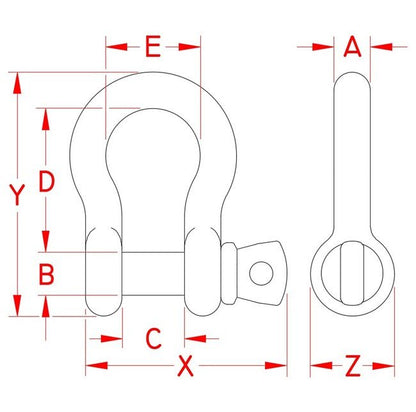

Specifications Dimension A

3/16 in

Specifications Dimension B

0.26 in

Specifications Dimension C

0.41 in

Specifications Dimension D

0.83 in

Specifications Dimension E

0.61 in

Specifications Dimension X

1.25 in

Specifications Dimension Y

1.43 in

Specifications Dimension Z

0.53 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA

Specifications Suncor Exclusive

Yes

Specifications Weight

0.06 lb

Specifications Working Load Limit Wll

650 lb

CAGE

1CXX6

NAICS

332999

PSC

4030

Suncor Stainless Steel Anchor Shackle
