Suncor Stainless Steel Anchor Shackle

Name: Suncor Stainless Steel Anchor Shackle
Brand: Suncor Stainless, Inc.
SKU: STA-23de7a
Price: 39.99 USD
Availability: OutOfStock

SKU:STA-23de7a

High-grade stainless steel anchor shackle for saltwater use, with 3000 lb WLL, ASME & Mil. Spec compliant.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

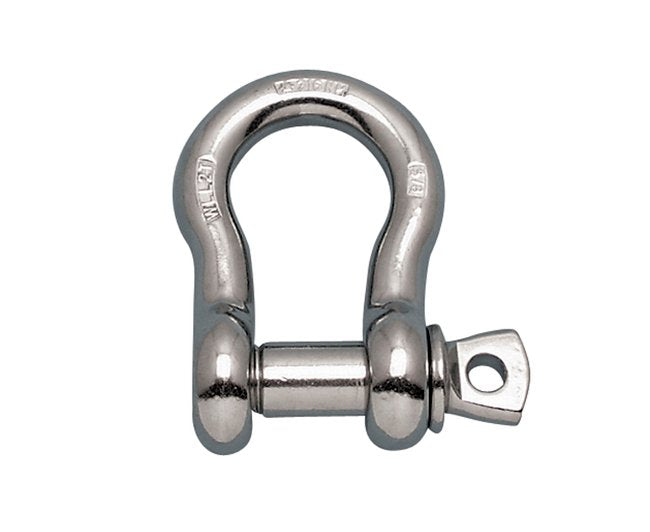

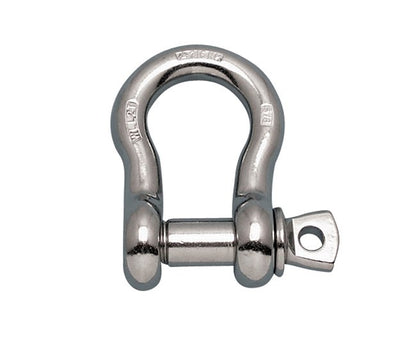

Constructed from high-grade, 316-NM stainless steel, the Suncor Stainless Steel Anchor Shackle with an oversize screw pin is designed for superior strength and durability in saltwater environments. With a Working Load Limit of 3000 lb, this anchor shackle securely connects anchors to chains. Compliant with ASME B30.26-2010, Fed Spec. RR-C-271, MIL-DTL-32655, and more, this drop-forged shackle ensures reliability and performance in demanding applications.

Product Specifications

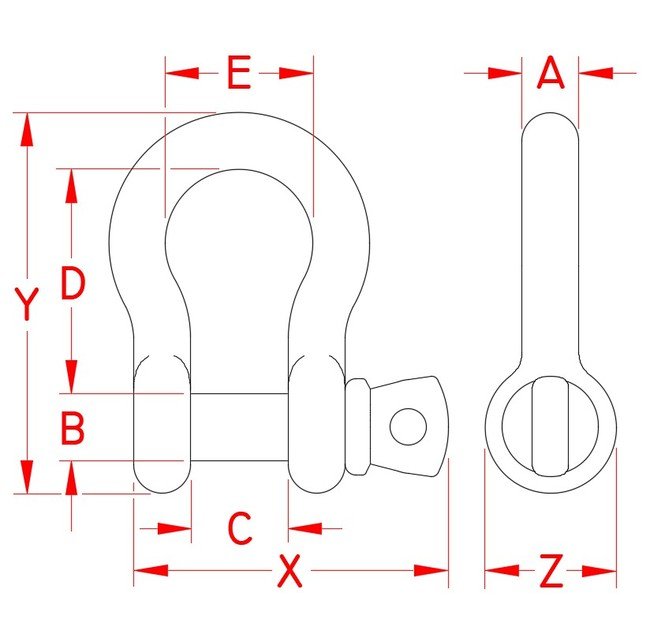

Specifications Dimension A

1/2 in

Specifications Dimension B

0.63 in

Specifications Dimension C

0.82 in

Specifications Dimension D

1.83 in

Specifications Dimension E

1.20 in

Specifications Dimension X

2.90 in

Specifications Dimension Y

3.20 in

Specifications Dimension Z

1.17 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA

Specifications Suncor Exclusive

Yes

Specifications Weight

0.67 lb

Specifications Working Load Limit Wll

3000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030

Suncor Stainless Steel Anchor Shackle
