Suncor Stainless Steel Anchor Shackle - 316 NM Grade, Oversize Screw Pin

Suncor Stainless Steel Anchor Shackle - 316 NM Grade, Oversize Screw Pin

SKU:STA-f89b43

Premium Suncor Stainless Steel Anchor Shackle - Grade 316 NM, Oversize Screw Pin, Ideal for Saltwater, WLL 14,000 lb

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

Suncor Stainless Steel Anchor Shackle - 316 NM Grade, Oversize Screw Pin

Suncor Stainless Steel Anchor Shackle - 316 NM Grade, Oversize Screw Pin

$79.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Anchor Shackle - 316 NM Grade, Oversize Screw Pin

Suncor Stainless Steel Anchor Shackle - 316 NM Grade, Oversize Screw Pin

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

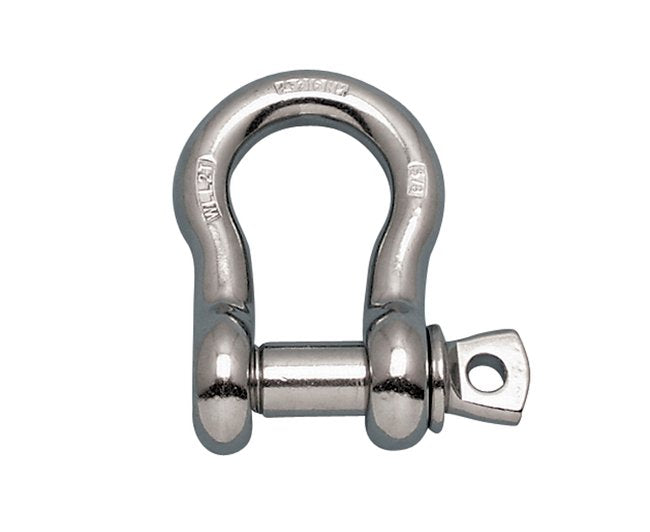

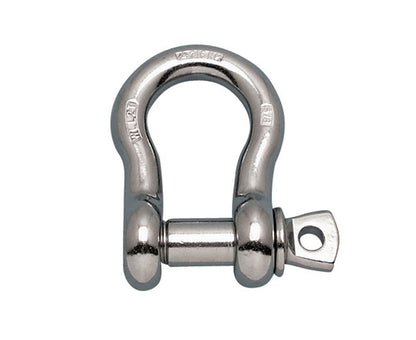

The Suncor Stainless Steel Anchor Shackle is constructed from high-quality grade 316 NM stainless steel, ensuring exceptional durability and resistance to corrosion, making it perfect for saltwater applications. Featuring an oversize screw pin for secure connections, this anchor shackle is designed to link the anchor to the chain effortlessly. Compliant with ASME B30.26-2010, Fed Spec RR-C-271, MIL-DTL-32655, and Type IVA standards, this drop forged shackle offers a Working Load Limit (WLL) of 14,000 lb, meeting the stringent requirements of institutional and government uses.

Product Specifications

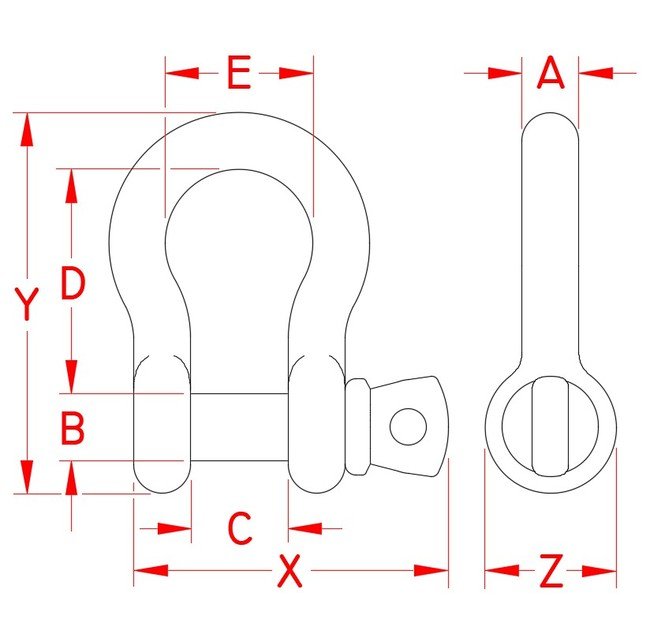

Specifications Dimension A
1-1/4 in
Specifications Dimension B
1.38 in
Specifications Dimension C
2.03 in
Specifications Dimension D
4.69 in
Specifications Dimension E
3.20 in
Specifications Dimension X
6.69 in
Specifications Dimension Y
7.85 in
Specifications Dimension Z
2.77 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
9.58 lb
Specifications Working Load Limit Wll
14,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
