Suncor Stainless Steel Anchor Shackle

Name: Suncor Stainless Steel Anchor Shackle
Brand: Suncor Stainless, Inc.
SKU: STA-abf24e
Price: 59.99 USD
Availability: OutOfStock

SKU:STA-abf24e

Premium Suncor Stainless Steel Anchor Shackle for secure anchor-to-chain connections in saltwater with 10,000 lbs WLL and ASME/Fed Spec compliance.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

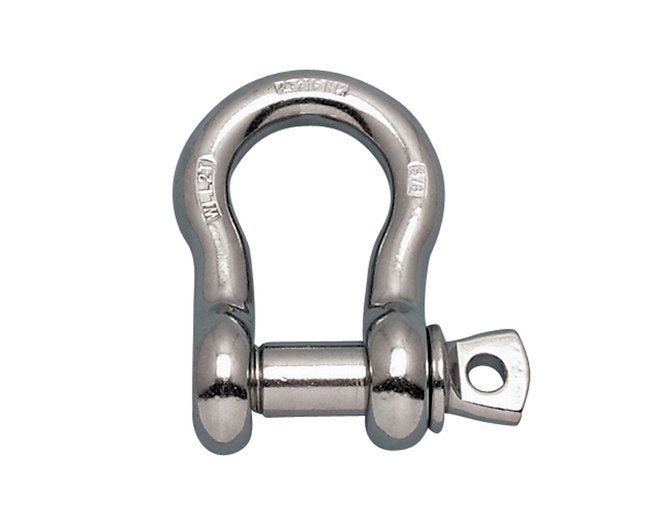

The Suncor Stainless Steel Anchor Shackle is expertly crafted from grade 316-NM stainless steel with a robust oversize screw pin design, ensuring exceptional durability and performance. Designed for saltwater applications, this anchor shackle seamlessly connects anchors to chains with a high Working Load Limit (WLL) of 10,000 lb. Compliant with ASME B30.26-2010, Fed Spec RR-C-271, MIL-DTL-32655, and more, this drop forged shackle meets stringent industry standards, making it an ideal choice for marine and industrial use.

Product Specifications

Specifications Dimension A

1 in

Specifications Dimension B

1.13 in

Specifications Dimension C

1.70 in

Specifications Dimension D

3.80 in

Specifications Dimension E

2.60 in

Specifications Dimension X

5.35 in

Specifications Dimension Y

6.44 in

Specifications Dimension Z

2.20 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA

Specifications Suncor Exclusive

Yes

Specifications Weight

4.62 lb

Specifications Working Load Limit Wll

10,000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
