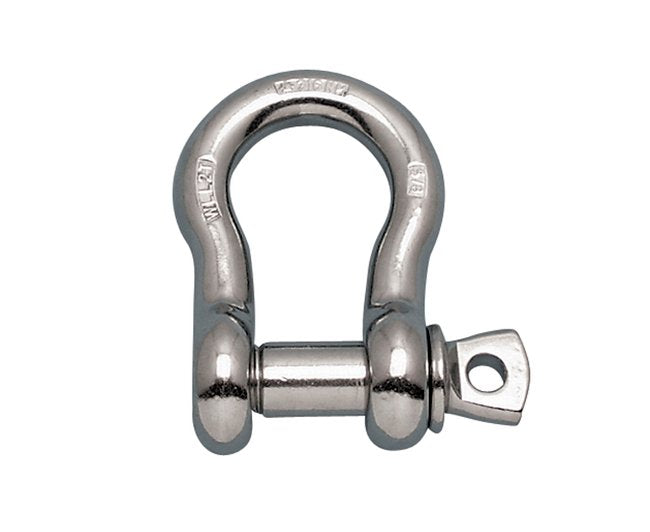

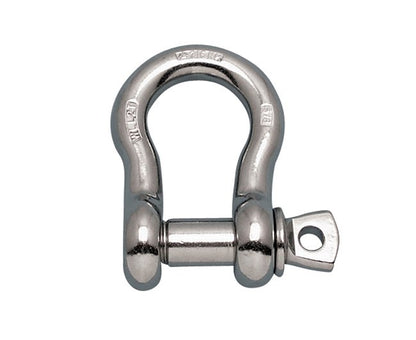

Suncor Stainless Steel Anchor Shackle

Name: Suncor Stainless Steel Anchor Shackle
Brand: Suncor Stainless, Inc.
SKU: STA-6dc4b6
Price: 24.99 USD
Availability: OutOfStock

SKU:STA-6dc4b6

High-quality Suncor Stainless Steel Anchor Shackle for secure and reliable anchoring. ASME & Mil. Spec compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your anchoring system with the Suncor Stainless Steel Anchor Shackle. Crafted from 316-NM stainless steel and featuring an oversized screw pin, this shackle offers exceptional durability and corrosion resistance, making it ideal for saltwater applications. With a working load limit of 1,300 lb and compliance to ASME, Fed. Spec. RR-C-271, and MIL-DTL-32655 standards, this anchor shackle ensures reliability in connecting your anchor to the chain, meeting the rigorous demands of marine and industrial settings.

Product Specifications

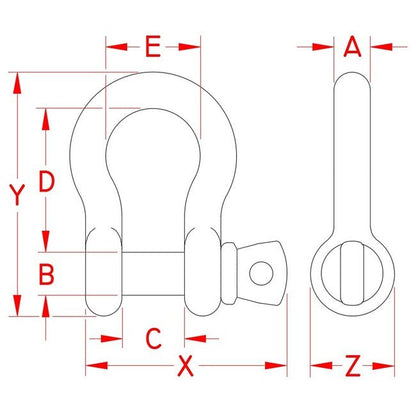

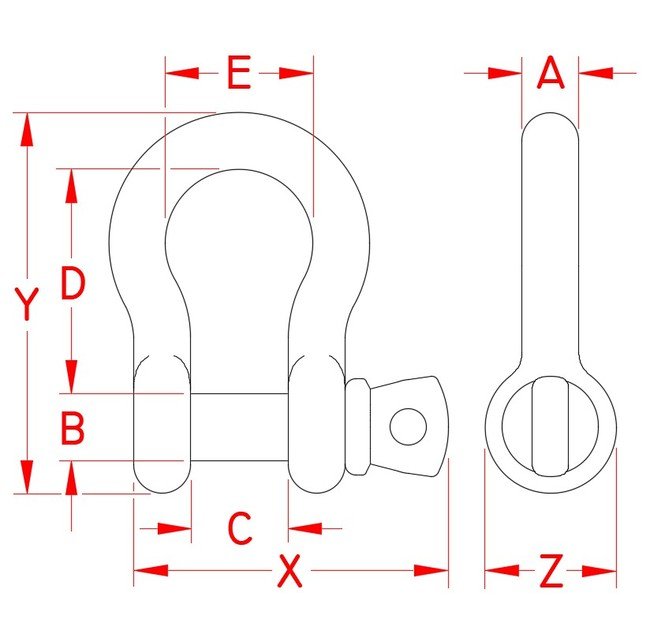

Specifications Dimension A

5/16 in

Specifications Dimension B

0.38 in

Specifications Dimension C

0.53 in

Specifications Dimension D

1.20 in

Specifications Dimension E

0.80 in

Specifications Dimension X

1.84 in

Specifications Dimension Y

2.06 in

Specifications Dimension Z

0.73 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA

Specifications Suncor Exclusive

Yes

Specifications Weight

0.16 lb

Specifications Working Load Limit Wll

1,300 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
