Suncor Stainless Steel Anchor Shackle

Name: Suncor Stainless Steel Anchor Shackle
Brand: Suncor Stainless, Inc.
SKU: STA-065a19
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-065a19

Premium Suncor Stainless Steel Anchor Shackle for marine applications, 1000 lb WLL, ASME B30.26-2010, Fed Spec RR-C-271, MIL-DTL-32655 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

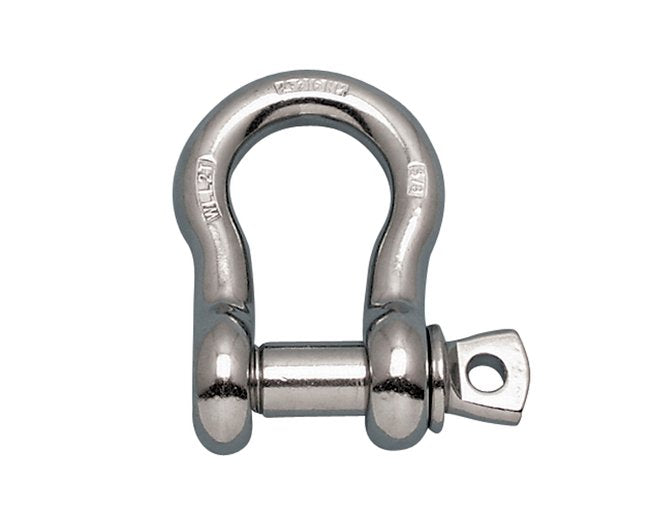

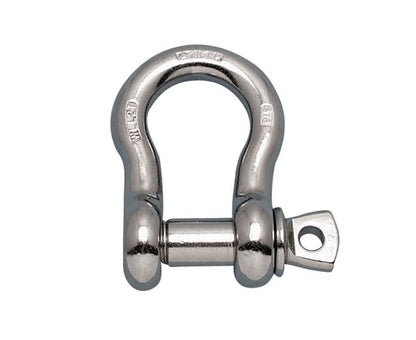

Enhance your marine operations with the Suncor Stainless Steel Anchor Shackle. Crafted from premium 316-NM stainless steel, this shackle boasts a robust construction, featuring a drop-forged design for superior strength. With a working load limit of 1000 lb, oversized screw pin, and adherence to ASME B30.26-2010, Fed Spec RR-C-271, MIL-DTL-32655 standards, this anchor shackle is perfect for saltwater applications. Trusted by government agencies and industrial users, it securely connects anchors to chains, ensuring reliability in the most demanding environments.

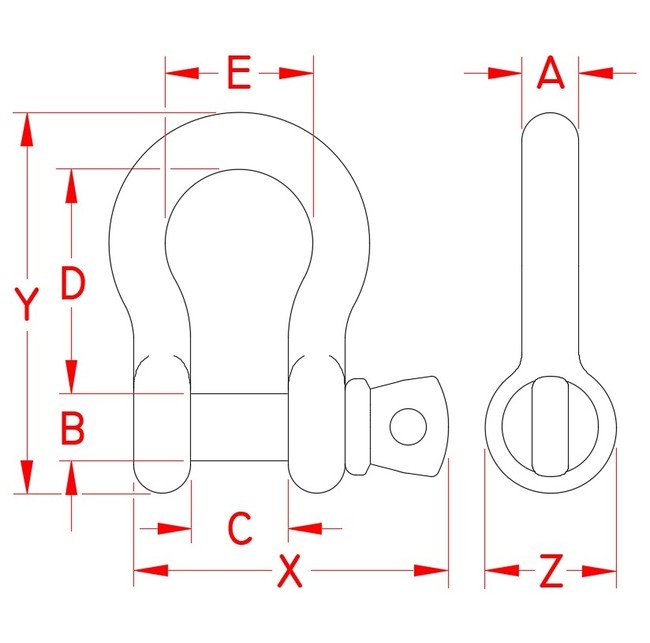

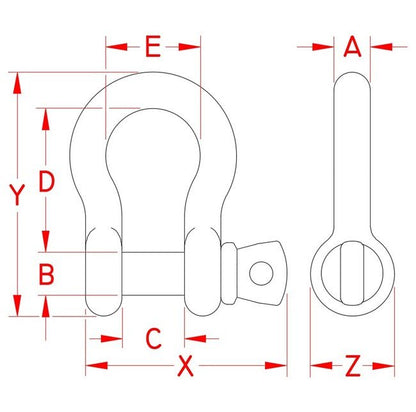

Product Specifications

Specifications Dimension A

1/4 in

Specifications Dimension B

0.31 in

Specifications Dimension C

0.47 in

Specifications Dimension D

1.11 in

Specifications Dimension E

0.75 in

Specifications Dimension X

1.56 in

Specifications Dimension Y

1.80 in

Specifications Dimension Z

0.61 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA

Specifications Suncor Exclusive

Yes

Specifications Weight

0.1 lb

Specifications Working Load Limit Wll

1000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
