Suncor Stainless Steel Anchor Shackle Body

Name: Suncor Stainless Steel Anchor Shackle Body
Brand: Suncor Stainless, Inc.
SKU: STA-09dc82
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-09dc82

Discover strength and reliability with the Suncor Stainless Steel Anchor Shackle Body. Grade 316-NM stainless steel, various sizes, 6,000 lb WLL.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

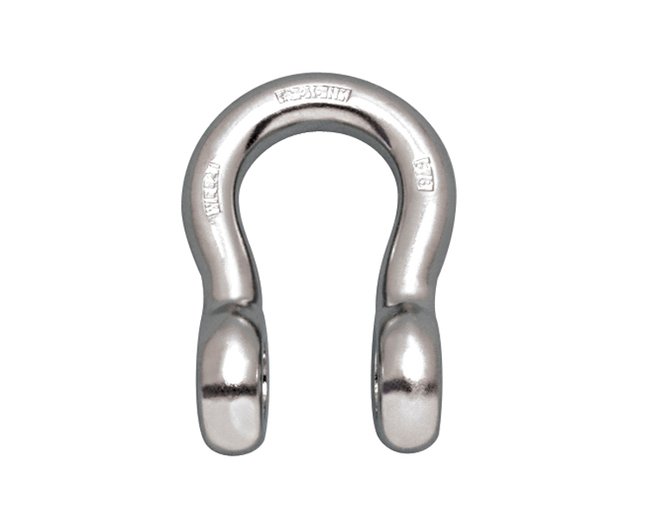

The Suncor Stainless Steel Anchor Shackle Body is precision-engineered from grade 316-NM stainless steel, ensuring exceptional durability and corrosion resistance. Marked with a Working Load Limit (WLL) of 6,000 lb for safety compliance, this drop-forged shackle body comes in various sizes from 1/4" to 1-1/4". Designed as a replacement part, it seamlessly integrates with the Shackle Bolt to deliver secure connections in heavy-duty applications.

Product Specifications

Specifications Dimension A

3/4 in

Specifications Dimension B

0.90 in

Specifications Dimension C

1.25 in

Specifications Dimension D

2.00 in

Specifications Dimension E

4.92 in

Specifications Dimension X

1.74 in

Specifications Dimension Y

4.83 in

Specifications Dimension Z

3.35 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Suncor Exclusive

Yes

Specifications Weight

1.46 lb

Specifications Working Load Limit Wll

6,000 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

Suncor Stainless Steel Anchor Shackle Body
