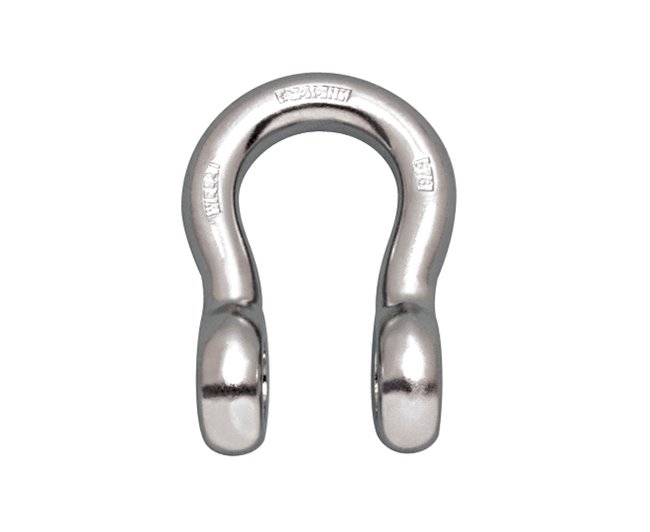

Suncor Stainless Steel Anchor Shackle Body
Suncor Stainless Steel Anchor Shackle Body
SKU:STA-5a94d7
Enhance anchoring systems with Suncor's Stainless Steel Anchor Shackle Body. Grade 316-NM steel, precision load rated up to 1500 lb, various sizes, and Shackle Bolt compatibility.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

Upgrade your anchoring system with the Suncor Stainless Steel Anchor Shackle Body. Crafted from grade 316-NM stainless steel, this unthreaded body is marked for precise load rating up to 1500 lb. Available in various sizes, this drop-forged shackle component ensures reliability and durability, perfect for replacement and compatibility with the Shackle Bolt. Trust Suncor's exclusive design for unmatched quality and performance.
Product Specifications
Specifications Dimension A
3/8 in
Specifications Dimension B
0.46 in
Specifications Dimension C
0.66 in
Specifications Dimension D
1.00 in
Specifications Dimension E
2.49 in
Specifications Dimension X
0.89 in
Specifications Dimension Y
2.44 in
Specifications Dimension Z
1.74 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Weight
0.19 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
