Suncor Stainless Steel Anchor Shackle - Grade 316 NM

Suncor Stainless Steel Anchor Shackle - Grade 316 NM

SKU:STA-335628

Premium Suncor 316-NM Stainless Steel Anchor Shackle for secure, saltwater applications. WLL 6,000 lb. ASME, Mil. Spec, Drop Forged.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Suncor Stainless Steel Anchor Shackle - Grade 316 NM

Suncor Stainless Steel Anchor Shackle - Grade 316 NM

$49.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Anchor Shackle - Grade 316 NM

Suncor Stainless Steel Anchor Shackle - Grade 316 NM

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

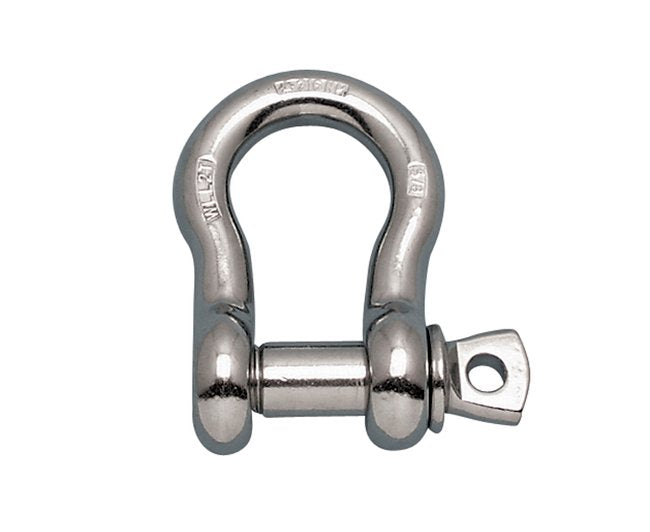

The Suncor Stainless Steel Anchor Shackle is constructed from grade 316 NM stainless steel, featuring an oversize screw pin for secure connections. Designed for saltwater applications, this anchor shackle is vital for linking anchors to chains. With a Working Load Limit (WLL) of 6,000 lb, ASME B30.26-2010, Class 2, Fed. Spec. RR-C-271, MIL-DTL-32655 Type IVA compliant, this drop-forged shackle ensures durability, strength, and corrosion resistance, meeting the stringent requirements of government and institutional buyers.

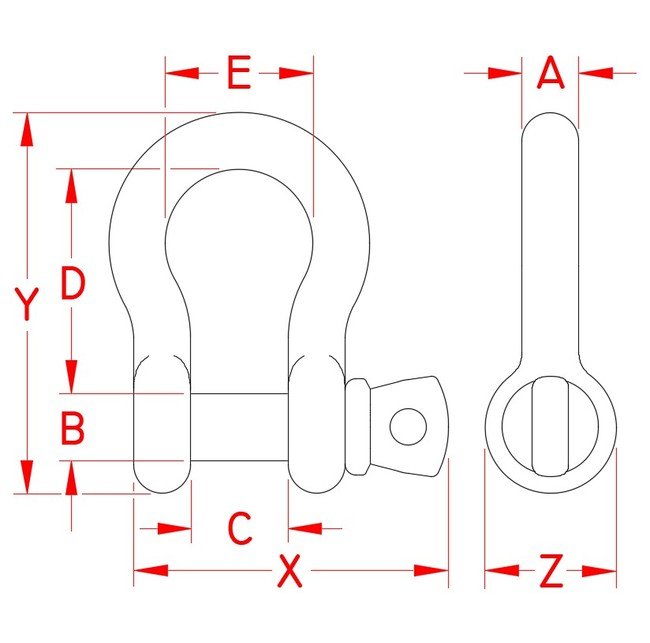

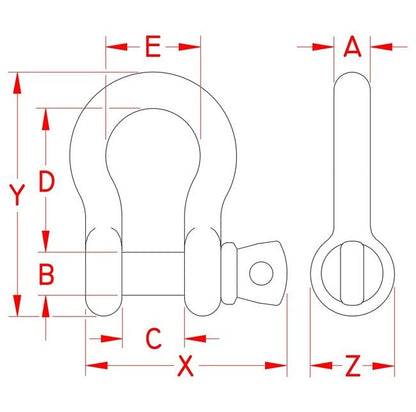

Product Specifications

Specifications Dimension A
3/4 in
Specifications Dimension B
0.88 in
Specifications Dimension C
1.25 in
Specifications Dimension D
2.84 in
Specifications Dimension E
1.90 in
Specifications Dimension X
4.90 in
Specifications Dimension Y
3.90 in
Specifications Dimension Z
1.74 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
2.11 lb
Specifications Working Load Limit Wll
6,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
