Suncor Stainless Steel Bearing Wire Rope Sheave

Suncor Stainless Steel Bearing Wire Rope Sheave

SKU:STA-fb5dda

Premium Suncor Stainless Steel Bearing Wire Rope Sheave for marine and industrial rigging applications. Grade 316 stainless steel with 2 high-quality bearings.

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

Suncor Stainless Steel Bearing Wire Rope Sheave

Suncor Stainless Steel Bearing Wire Rope Sheave

$79.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Bearing Wire Rope Sheave

Suncor Stainless Steel Bearing Wire Rope Sheave

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

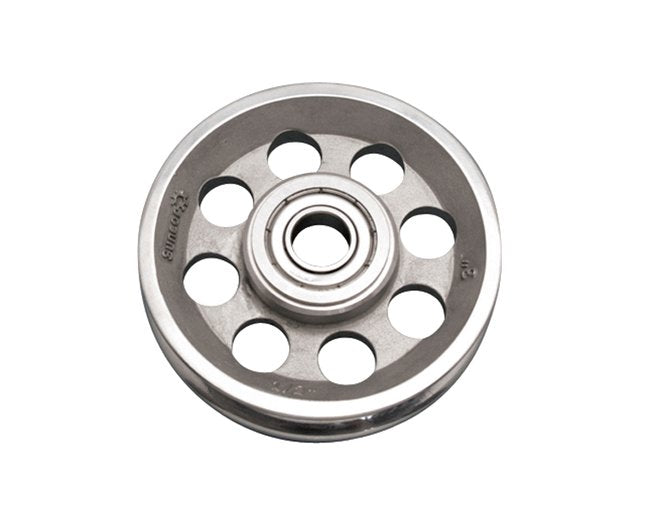

The Suncor Stainless Steel Bearing Wire Rope Sheave is precision-cast from grade 316 stainless steel, ensuring maximum corrosion resistance. Equipped with 2 shielded stainless steel bearings, it accommodates wire rope sizes from 3/32'' to 3/8''. With a Working Load Limit (WLL) of 3,800 lb, this sheave is perfect for marine and industrial rigging applications, offering exceptional durability and performance in challenging environments.

Product Specifications

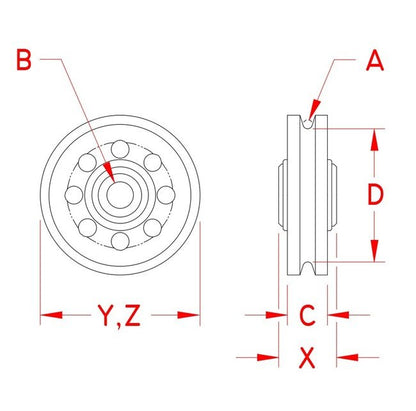

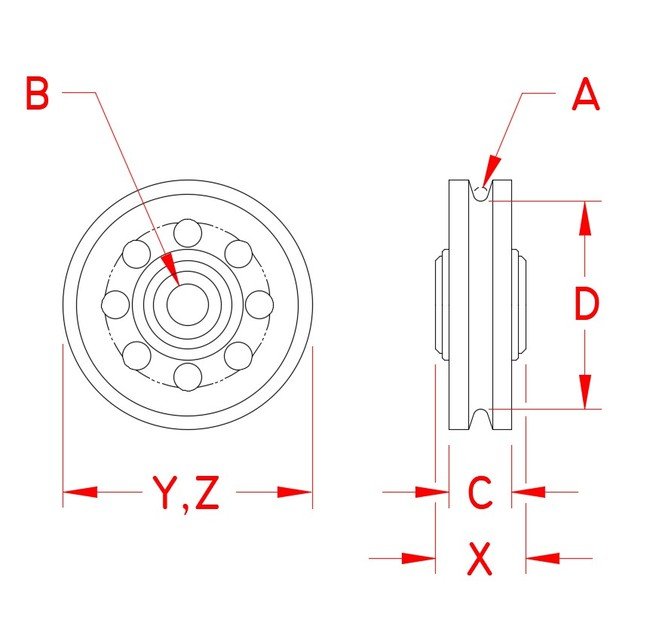

Specifications Dimension A
5/16 in
Specifications Dimension B
3/4 in
Specifications Dimension C
1.13 in
Specifications Dimension D
4.38 in
Specifications Dimension X
1.41 in
Specifications Dimension Y
5.25 in
Specifications Dimension Z
5.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
2.63 lb
Specifications Working Load Limit Wll
3,800 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
