Suncor Stainless Steel Bearings Rope Sheave

Suncor Stainless Steel Bearings Rope Sheave

SKU:STA-70f0f8

High-quality Suncor Stainless Steel Bearings Rope Sheave designed for 1/4" to 5/8" ropes, ideal for marine & industrial rigging.

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

Suncor Stainless Steel Bearings Rope Sheave

Suncor Stainless Steel Bearings Rope Sheave

$79.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Bearings Rope Sheave

Suncor Stainless Steel Bearings Rope Sheave

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

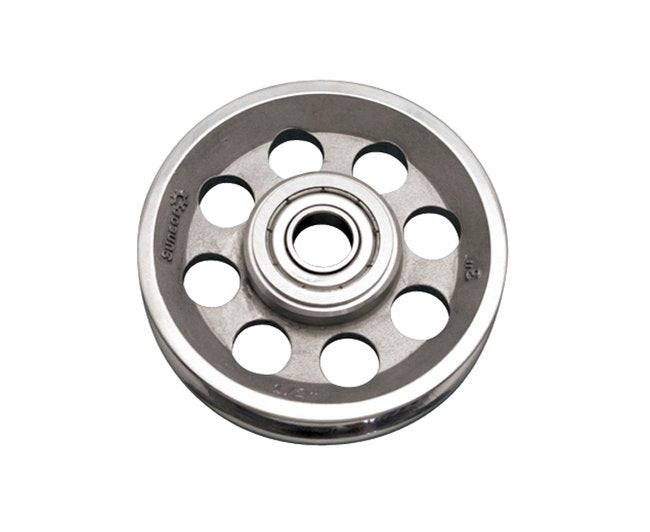

The Suncor Stainless Steel Bearings Rope Sheave is engineered with two premium shielded stainless steel bearings, designed to accommodate rope sizes ranging from 1/4" to 5/8". Crafted from grade 316 stainless steel, this sheave offers unparalleled corrosion resistance and durability, making it the perfect choice for marine and industrial rigging applications. With a Working Load Limit (WLL) of 2,500 lb, precision cast fabrication, and patented design exclusive to Suncor, this sheave ensures superior performance and reliability in demanding environments.

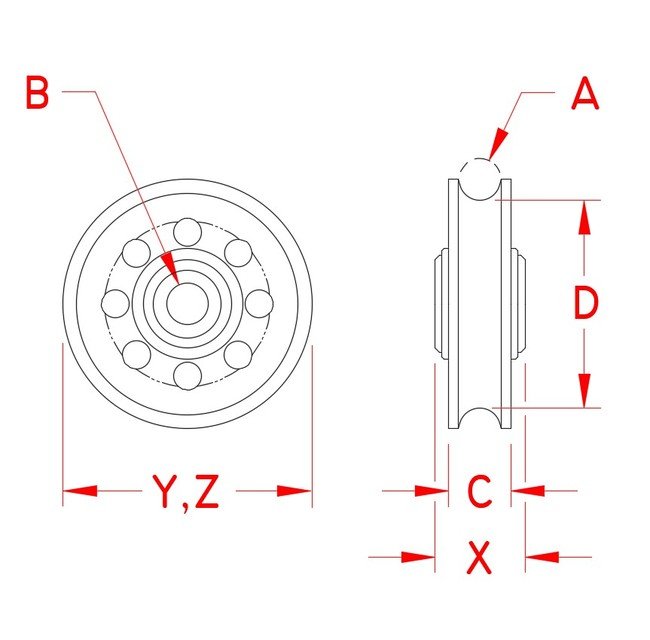

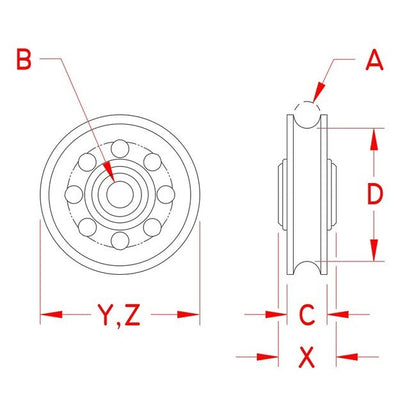

Product Specifications

Specifications Dimension A
5/8 in
Specifications Dimension B
5/8 in
Specifications Dimension C
0.94 in
Specifications Dimension D
3.63 in
Specifications Dimension X
1.07 in
Specifications Dimension Y
4.25 in
Specifications Dimension Z
4.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
1.38 lb
Specifications Working Load Limit Wll
2,500 lb
