Suncor Stainless Steel Bolt Anchor Shackle

Suncor Stainless Steel Bolt Anchor Shackle

SKU:STA-32c97c

Premium grade 316 stainless steel Bolt Anchor Shackle with oversize bolt for saltwater use. Working Load Limit of 14,000 lb. Meets ASME, Fed. Spec., MIL-DTL standards.

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

Suncor Stainless Steel Bolt Anchor Shackle

Suncor Stainless Steel Bolt Anchor Shackle

$79.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Bolt Anchor Shackle

Suncor Stainless Steel Bolt Anchor Shackle

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

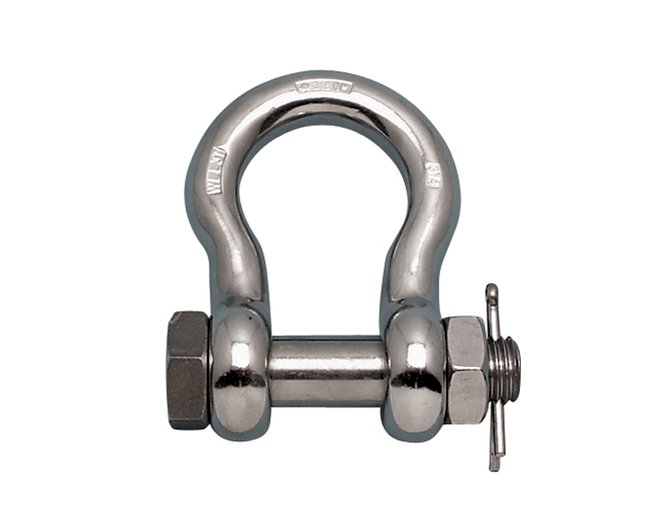

The Suncor Stainless Steel Bolt Anchor Shackle is expertly crafted from grade 316 stainless steel, featuring an oversize bolt for unparalleled strength and durability. Engineered to excel in saltwater environments, this anchor shackle is essential for connecting anchors securely to chains or anchor swivels. With a high Working Load Limit (WLL) of 14,000 lb, this drop-forged shackle meets stringent ASME, Fed. Spec., and MIL-DTL industry standards, ensuring reliable performance in critical applications.

Product Specifications

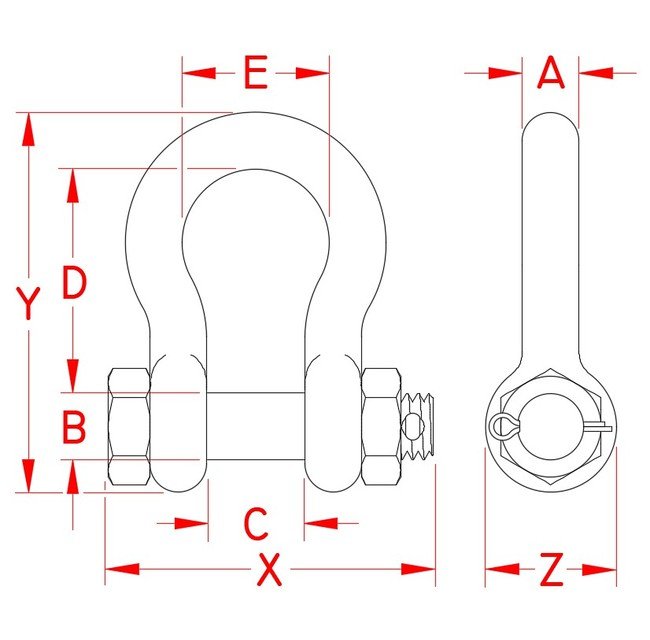

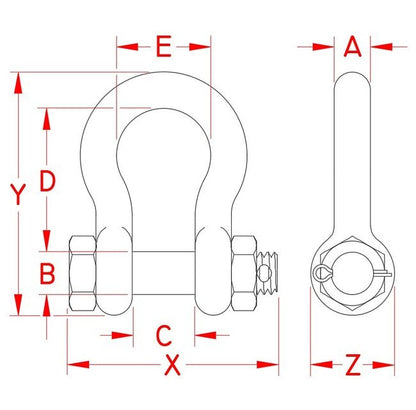

Specifications Dimension A
1-1/4 in
Specifications Dimension B
1.38 in
Specifications Dimension C
2.03 in
Specifications Dimension D
4.69 in
Specifications Dimension E
3.20 in
Specifications Dimension X
7.22 in
Specifications Dimension Y
8.15 in
Specifications Dimension Z
2.77 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
10.79 lb
Specifications Working Load Limit Wll
14,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
