Suncor Stainless Steel Bolt Anchor Shackle

Suncor Stainless Steel Bolt Anchor Shackle

SKU:STA-340250

Explore the Suncor Stainless Steel Bolt Anchor Shackle - a durable, corrosion-resistant solution for marine anchor connections.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Suncor Stainless Steel Bolt Anchor Shackle

Suncor Stainless Steel Bolt Anchor Shackle

$49.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Bolt Anchor Shackle

Suncor Stainless Steel Bolt Anchor Shackle

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

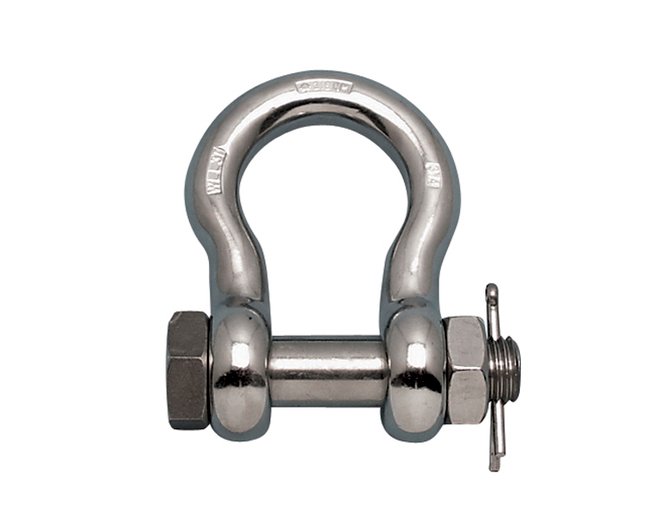

The Suncor Stainless Steel Bolt Anchor Shackle is expertly crafted from grade 316 stainless steel with an oversize bolt, ensuring exceptional durability and corrosion resistance, perfect for saltwater environments. Designed primarily to securely fasten anchors to chains or swivels, this shackle boasts a working load limit of 10,000 lb, meeting ASME B30.26-2010, Fed. Spec. RR-C-271, MIL-DTL-32655, and Type IVA standards. Manufactured with precision drop-forged techniques, this Suncor exclusive product guarantees reliability and safety in critical marine applications.

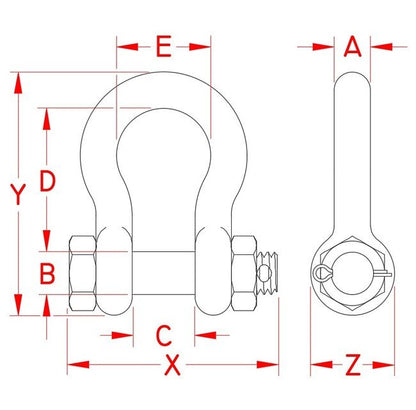

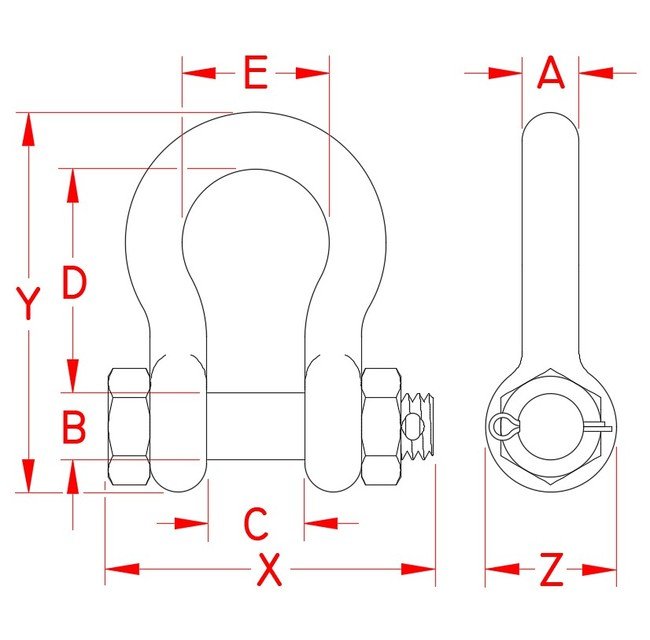

Product Specifications

Specifications Dimension A
1 in
Specifications Dimension B
1.13 in
Specifications Dimension C
1.70 in
Specifications Dimension D
3.80 in
Specifications Dimension E
2.60 in
Specifications Dimension X
5.15 in
Specifications Dimension Y
6.46 in
Specifications Dimension Z
2.20 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
5.09 lb
Specifications Working Load Limit Wll
10,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
