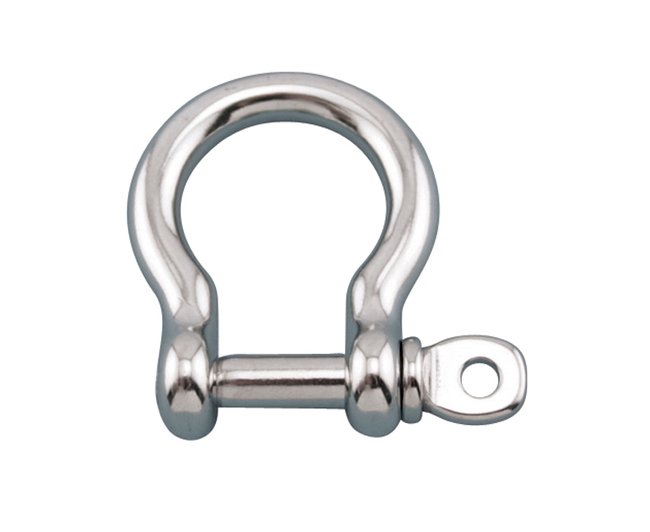

Suncor Stainless Steel Bow Shackle with Screw Pin

Name: Suncor Stainless Steel Bow Shackle with Screw Pin
Brand: Suncor Stainless, Inc.
SKU: STA-68317e
Price: 24.99 USD
Availability: OutOfStock

SKU:STA-68317e

Grade 316 Stainless Steel Bow Shackle with Screw Pin for marine & industrial use. Sizes from 5/32" to 1-1/4". Maximum WLL: 3000 lb.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your marine and industrial applications with the Suncor Stainless Steel Bow Shackle featuring a screw pin. Crafted from grade 316 stainless steel for superior corrosion resistance and durability. Available in a range of sizes from 5/32" to 1-1/4". This precision-cast shackle ensures a Working Load Limit (WLL) of 3000 lb, meeting stringent quality and safety standards.

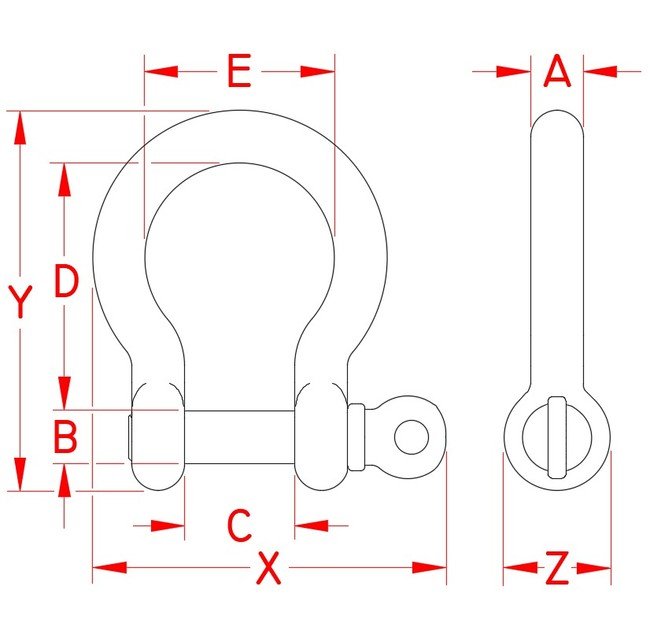

Product Specifications

Specifications Dimension A

5/8 in

Specifications Dimension B

0.63 in

Specifications Dimension C

1.25 in

Specifications Dimension D

3.00 in

Specifications Dimension E

2.10 in

Specifications Dimension X

3.67 in

Specifications Dimension Y

4.55 in

Specifications Dimension Z

1.25 in

Specifications Fabrication Type

Precision Cast

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Weight

1.2 lb

Specifications Working Load Limit Wll

3000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
