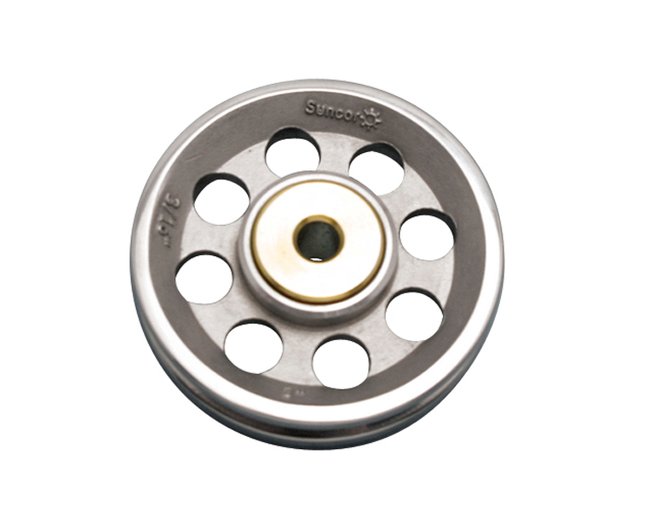

Suncor Stainless Steel Bushing Wire Rope Sheave
Suncor Stainless Steel Bushing Wire Rope Sheave
SKU:STA-1d8f48
Premium-grade stainless steel wire rope sheave with bronze bushing, perfect for marine and industrial rigging applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Suncor Stainless Steel Bushing Wire Rope Sheave is precision-cast from grade 316 stainless steel, offering exceptional corrosion resistance and durability. Equipped with a bronze bushing, this sheave accommodates wire rope sizes ranging from 3/32" to 3/8". With a working load limit of 5,000 lb, it's ideal for demanding marine and industrial rigging applications. Suncor's exclusive design and patented features ensure reliable performance in critical operations.
Product Specifications

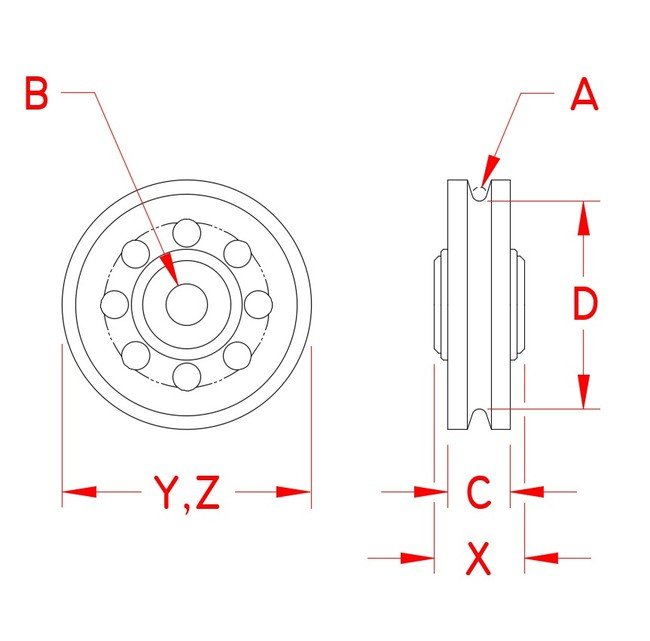

Specifications Dimension A
5/16 in
Specifications Dimension B
1/2 in
Specifications Dimension C
1.13 in
Specifications Dimension D
4.38 in
Specifications Dimension X
1.38 in
Specifications Dimension Y
5.25 in
Specifications Dimension Z
5.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
3 lb
Specifications Working Load Limit Wll
5,000 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
