Suncor Stainless Steel Chain Shackle
Suncor Stainless Steel Chain Shackle
SKU:STA-2a903b
Premium Suncor Stainless Steel Chain Shackles for industrial and marine use. Grade 316 steel, corrosion-resistant, meets ASME and military specs.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Suncor Stainless Steel Chain Shackle
$32.99
Quantity: 1
Claim Your Seller Account
Suncor Stainless Steel Chain Shackle
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial and marine applications with Suncor Stainless Steel Chain Shackles. Crafted from grade 316 stainless steel, these shackles feature an oversized screw pin for secure fastening and exceptional corrosion resistance. Meeting strict standards including ASME B30.26-2010, Fed Spec RR-C-271, and MIL-DTL-32655, our shackles are designed for reliability and durability in demanding environments.

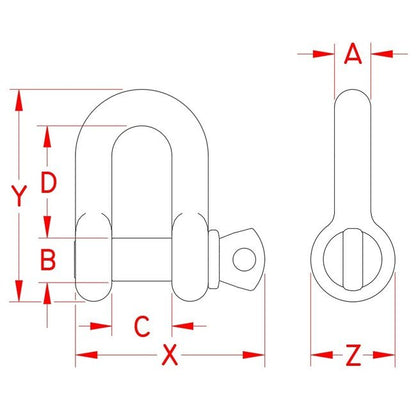

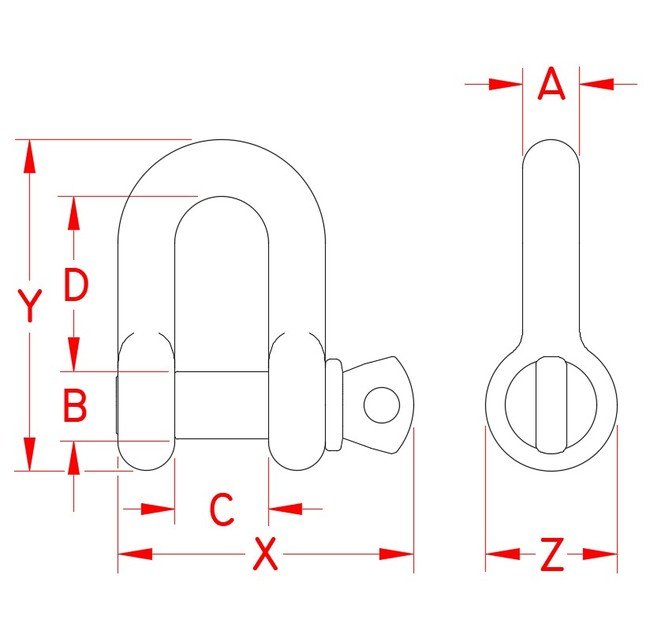

Product Specifications
Specifications Dimension A
7/8 in
Specifications Dimension B
1.00 in
Specifications Dimension C
1.45 in
Specifications Dimension D
2.88 in
Specifications Dimension X
4.50 in
Specifications Dimension Y
5.32 in
Specifications Dimension Z
1.95 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
3.02 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
