Suncor Stainless Steel Chain Shackle

Suncor Stainless Steel Chain Shackle

SKU:STA-ce388c

Premium stainless steel chain shackle with 2000 lb working load limit. Ideal for industrial and marine applications. Compliant with ASME, Fed Spec, MIL-DTL standards.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Suncor Stainless Steel Chain Shackle

Suncor Stainless Steel Chain Shackle

$24.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Chain Shackle

Suncor Stainless Steel Chain Shackle

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

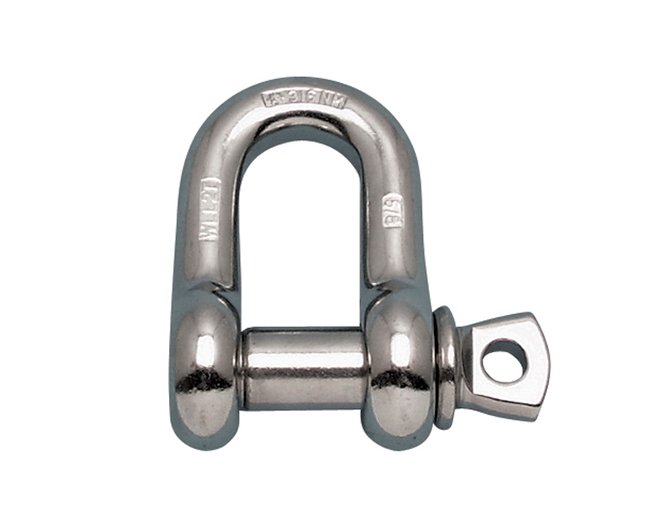

The Suncor Stainless Steel Chain Shackle is a premium industrial and marine-grade shackle constructed from durable grade 316 stainless steel for exceptional corrosion resistance. With an oversize screw pin and a working load limit of 2000 lb, this chain shackle is designed for heavy-duty applications. Compliant with ASME B30.26-2010, Fed Spec RR-C-271, and MIL-DTL-32655 standards, this drop-forged shackle meets the stringent requirements of various industries. Available in different sizes, this Suncor chain shackle is your reliable solution for secure and efficient rigging operations.

Product Specifications

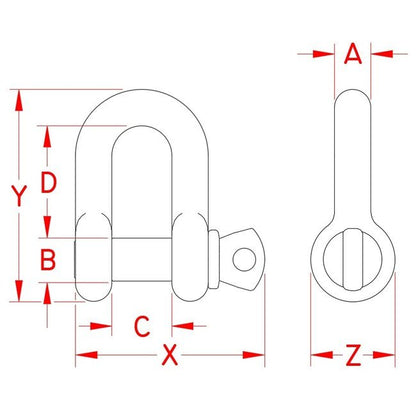

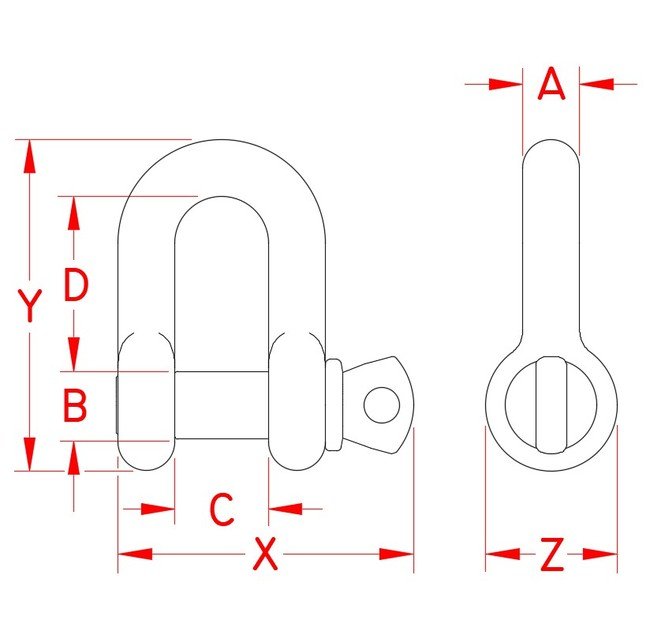

Specifications Dimension A
7/16 in
Specifications Dimension B
0.50 in
Specifications Dimension C
0.75 in
Specifications Dimension D
1.43 in
Specifications Dimension X
2.37 in
Specifications Dimension Y
2.61 in
Specifications Dimension Z
1.00 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
0.38 lb
Specifications Working Load Limit Wll
2000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
