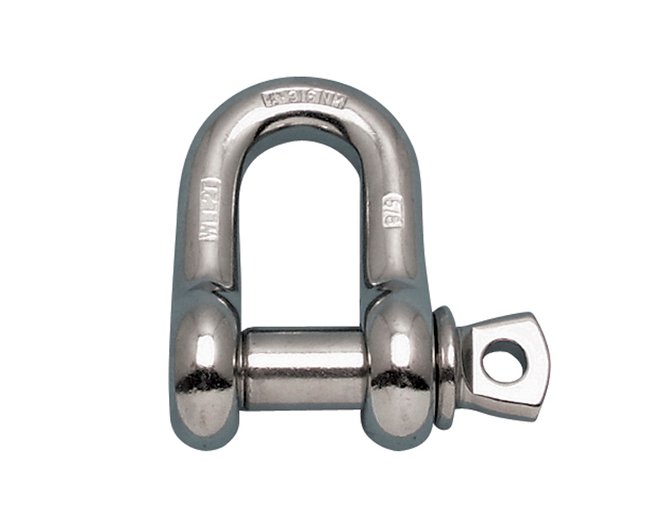

Suncor Stainless Steel Chain Shackle

Name: Suncor Stainless Steel Chain Shackle
Brand: Suncor Stainless, Inc.
SKU: STA-376802
Price: 34.99 USD
Availability: OutOfStock

SKU:STA-376802

Premium Suncor Stainless Steel Chain Shackle with 6,000 lb WLL, ideal for industrial & marine use, compliance with ASME & MIL standards.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Suncor Stainless Steel Chain Shackle is a superior solution for industrial and marine applications, constructed from 316-NM stainless steel for exceptional corrosion resistance. Featuring a robust oversize screw pin and a working load limit of 6,000 lb, this drop-forged shackle meets ASME B30.26-2010, Fed Spec RR-C-271, MIL-DTL-32655, and Type IVB standards. Trusted by government agencies, this Suncor exclusive product ensures reliability and durability in demanding environments.

Product Specifications

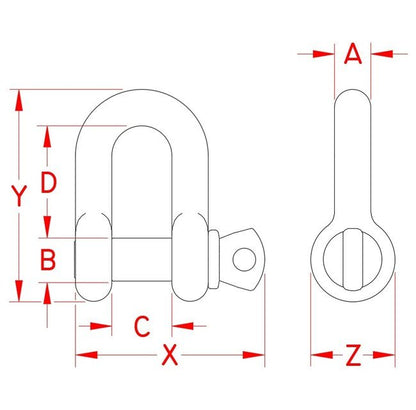

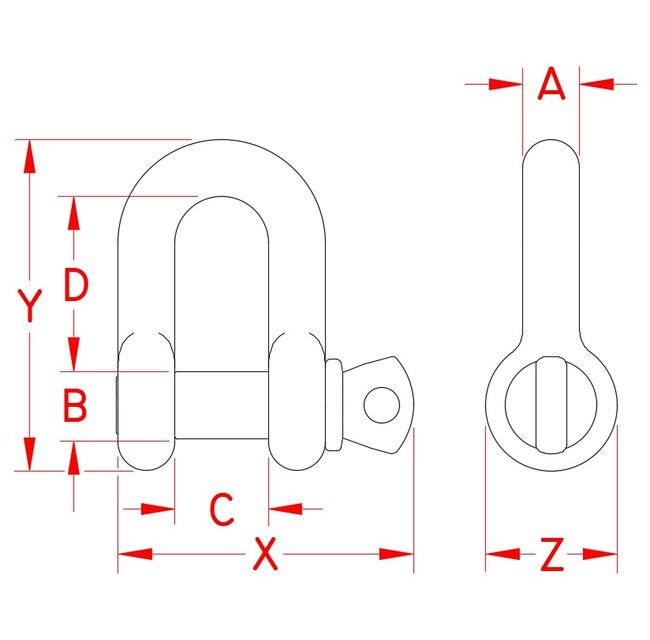

Specifications Dimension A

3/4 in

Specifications Dimension B

0.88 in

Specifications Dimension C

1.20 in

Specifications Dimension D

2.40 in

Specifications Dimension X

3.94 in

Specifications Dimension Y

4.36 in

Specifications Dimension Z

1.72 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

1.95 lb

Specifications Working Load Limit Wll

6,000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
