Suncor Stainless Steel Chain Shackle
Suncor Stainless Steel Chain Shackle
SKU:STA-9314b1
Premium-grade 316-NM stainless steel shackle with 3000 lb WLL, ideal for industrial & marine applications. Complies with ASME, Fed Spec, MIL-Spec.
Regular price

            $32.99


          Regular price






          Sale price

          $32.99



        Unit price



           per




    Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

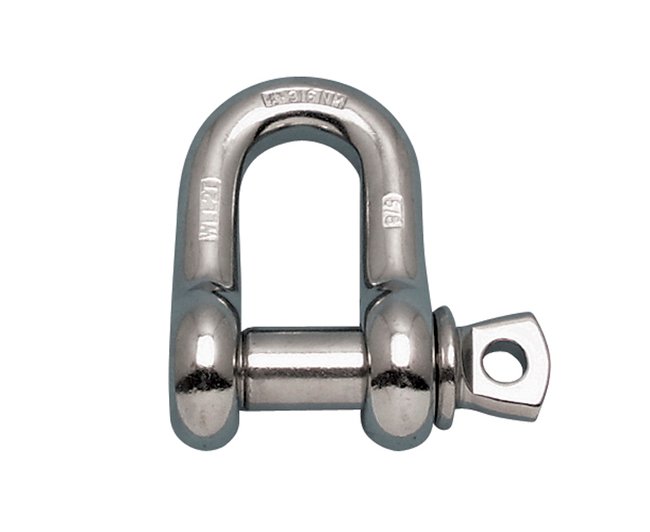

The Suncor Stainless Steel Chain Shackle is a premium-grade 316-NM stainless steel shackle designed for maximum corrosion resistance in industrial and marine applications. Featuring an oversize screw pin for secure fastening, this drop-forged shackle boasts a Working Load Limit (WLL) of 3000 lb. It complies with ASME B30.26-2010, Fed Spec RR-C-271, MIL-DTL-32655 standards, and is MIL-Spec rated, making it suitable for a wide range of heavy-duty usage scenarios.
Product Specifications

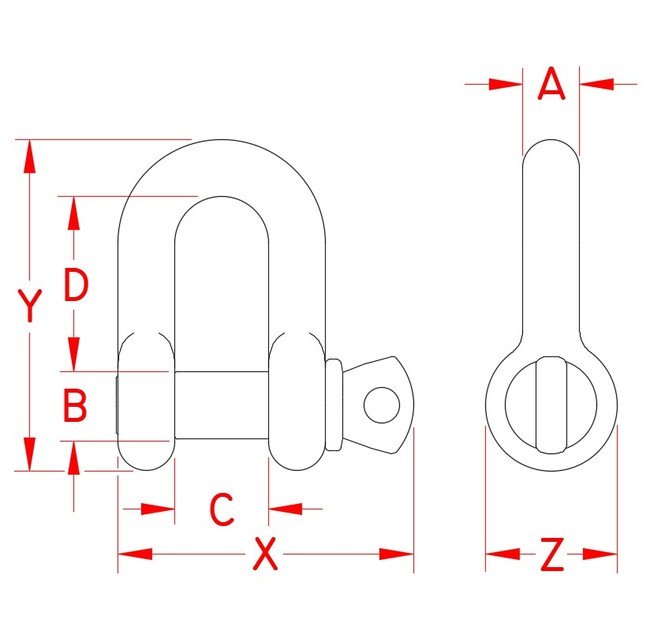

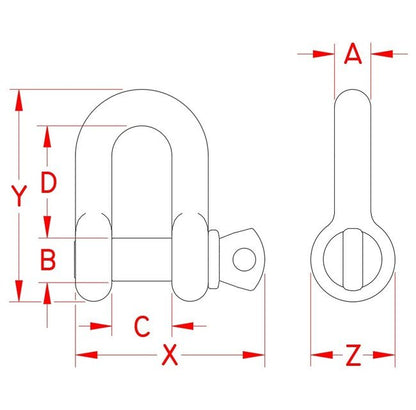

                  Specifications Dimension A

                1/2 in

                  Specifications Dimension B

                0.63 in

                  Specifications Dimension C

                0.79 in

                  Specifications Dimension D

                1.58 in

                  Specifications Dimension X

                2.74 in

                  Specifications Dimension Y

                2.90 in

                  Specifications Dimension Z

                1.18 in

                  Specifications Fabrication Type

                Drop Forged

                  Specifications Load Rated

                Yes

                  Specifications Made In

                Import

                  Specifications Material

                316-NM Stainless Steel

                  Specifications Mil Spec

                Yes

                  Specifications Specification

                ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB

                  Specifications Suncor Exclusive

                Yes

                  Specifications Weight

                0.61 lb

                  Specifications Working Load Limit Wll

                3000 lb

                  CAGE

                1CXX6

                  NAICS

                332999

                  PSC

                4030
