Suncor Stainless Steel Chain Shackle

Name: Suncor Stainless Steel Chain Shackle
Brand: Suncor Stainless, Inc.
SKU: STA-ffbc05
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-ffbc05

Secure and durable Suncor Stainless Steel Chain Shackle for industrial and marine applications. Corrosion-resistant with 4,000 lb Working Load Limit. Compliant with ASME, Fed. Spec., MIL-DTL-32655, and more.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

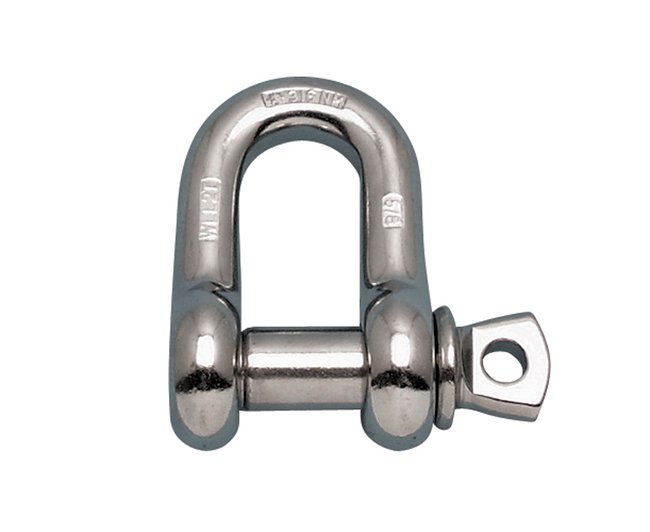

Upgrade your industrial and marine applications with the Suncor Stainless Steel Chain Shackle. Crafted from grade 316 stainless steel, this chain shackle boasts maximum corrosion resistance. Featuring an oversize screw pin for secure fastening, it offers a Working Load Limit (WLL) of 4,000 lb. Compliant with ASME B30.26-2010, Class 2, Fed. Spec. RR-C-271, MIL-DTL-32655, and more, this drop-forged shackle is a reliable choice for heavy-duty use.

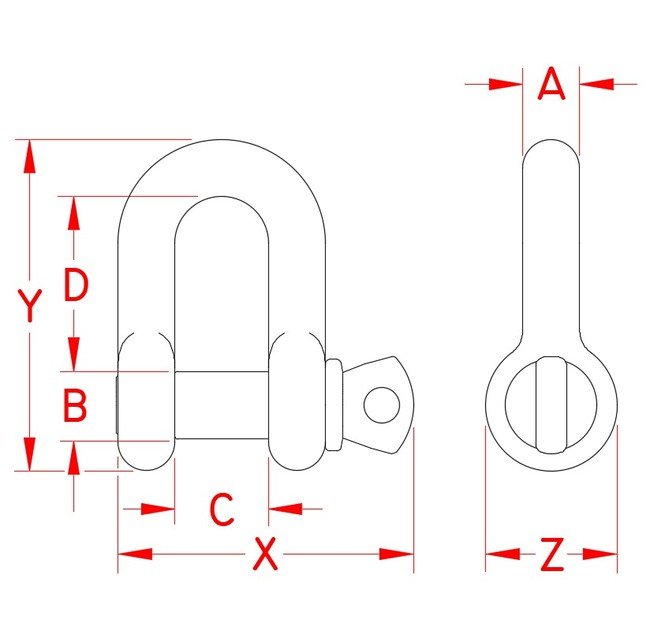

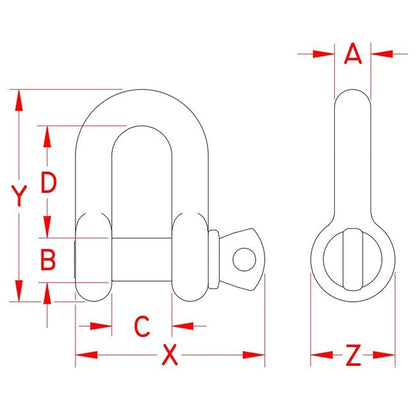

Product Specifications

Specifications Dimension A

5/8 in

Specifications Dimension B

0.75 in

Specifications Dimension C

1.05 in

Specifications Dimension D

1.94 in

Specifications Dimension X

3.32 in

Specifications Dimension Y

3.61 in

Specifications Dimension Z

1.45 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

1.15 lb

Specifications Working Load Limit Wll

4,000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
