Suncor Stainless Steel Chain Shackle Body

Suncor Stainless Steel Chain Shackle Body

SKU:STA-803a0c

Durable Suncor Stainless Steel Chain Shackle Body for heavy-duty applications. Grade 316-NM stainless steel, 6,000 lb WLL, various sizes.

Regular price $34.99
Regular price Sale price $34.99
Sale

Initiate Order

Suncor Stainless Steel Chain Shackle Body

Suncor Stainless Steel Chain Shackle Body

$34.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Chain Shackle Body

Suncor Stainless Steel Chain Shackle Body

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

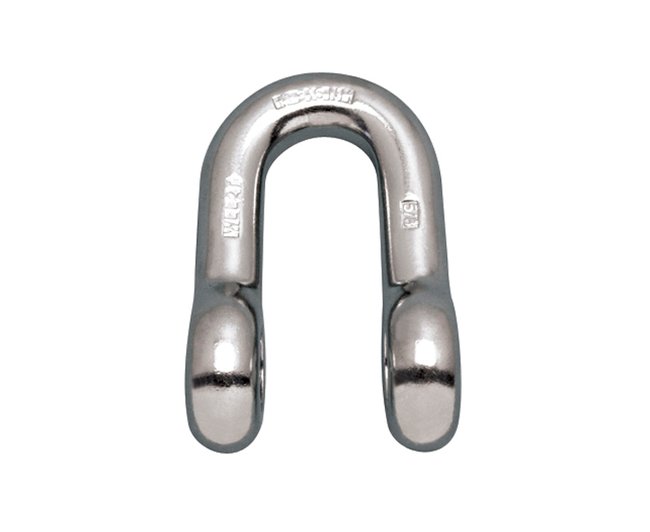

The Suncor Stainless Steel Chain Shackle Body is a reliable and durable component marked to the nearest fractional ton, ensuring precision in heavy-duty applications. Fabricated from grade 316-NM stainless steel using drop forging techniques, this unthreaded shackle body offers exceptional strength and corrosion resistance. With a generous working load limit of 6,000 lb, this versatile component is an ideal replacement part compatible with the Shackle Bolt, available in various sizes from 1/4" to 1". Designed for longevity and performance, the Suncor Chain Shackle Body is a trusted solution for industrial, marine, and institutional applications.

Product Specifications

Specifications Dimension A
3/4 in
Specifications Dimension B
0.90 in
Specifications Dimension C
1.25 in
Specifications Dimension D
4.46 in
Specifications Dimension X
1.7 in
Specifications Dimension Y
2.75 in
Specifications Dimension Z
4.35 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Weight
1.28 lb
Specifications Working Load Limit Wll
6,000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
