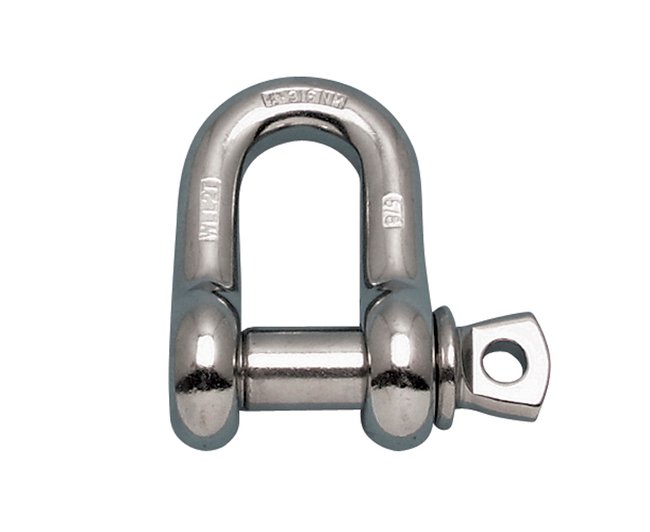

Suncor Stainless Steel Chain Shackle - Grade 316, Corrosion-Resistant
Suncor Stainless Steel Chain Shackle - Grade 316, Corrosion-Resistant
SKU:STA-d5a50f
Premium Suncor Stainless Steel Chain Shackle: Grade 316, 1000 lb WLL, Corrosion-Resistant, ASME B30.26-2010 Compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Suncor Stainless Steel Chain Shackle - Grade 316, Corrosion-Resistant
$29.99
Quantity: 1
Claim Your Seller Account
Suncor Stainless Steel Chain Shackle - Grade 316, Corrosion-Resistant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial and marine applications with the Suncor Stainless Steel Chain Shackle. Crafted from grade 316 stainless steel, this shackle features an oversize screw pin, ensuring maximum corrosion resistance. With a working load limit of 1000 lb and adherence to multiple specifications including ASME B30.26-2010, Fed Spec RR-C-271, and MIL-DTL-32655, this shackle guarantees durability and reliability in demanding environments.
Product Specifications

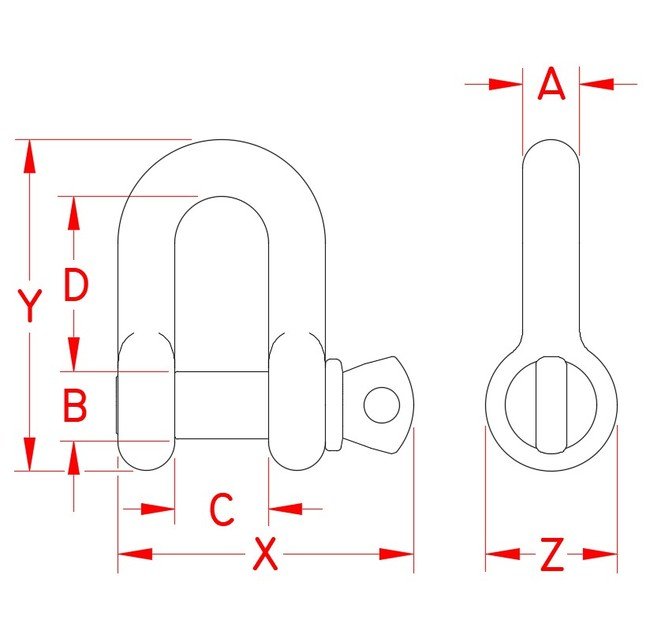

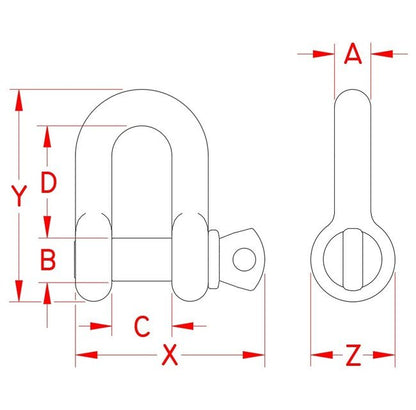

Specifications Dimension A
1/4 in
Specifications Dimension B
0.31 in
Specifications Dimension C
0.46 in
Specifications Dimension D
0.87 in
Specifications Dimension X
1.48 in
Specifications Dimension Y
1.60 in
Specifications Dimension Z
0.60 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
0.09 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
