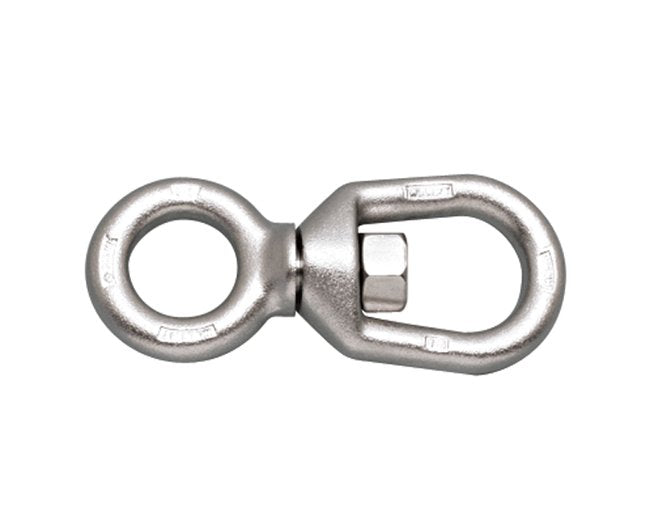

Suncor Stainless Steel Chain Swivel

Name: Suncor Stainless Steel Chain Swivel
Brand: Suncor Stainless, Inc.
SKU: STA-57360d
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-57360d

Reliable Suncor Stainless Steel Chain Swivel for lifting and rigging, preventing chain twists. Grade 316 stainless steel, 5,140 lbs load capacity, large eye opening. Complies with Federal Spec RR-C-271F.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance lifting and rigging operations with the Suncor Stainless Steel Chain Swivel. Crafted from grade 316 stainless steel, it resists corrosion, supports loads up to 5,140 lbs, and prevents twists in chains. Designed for durability and safety, this swivel boasts an extra-large eye opening for oversized chains. Compliant with Federal Specification RR-C-271F Type VII, Class 1 standards.

Product Specifications

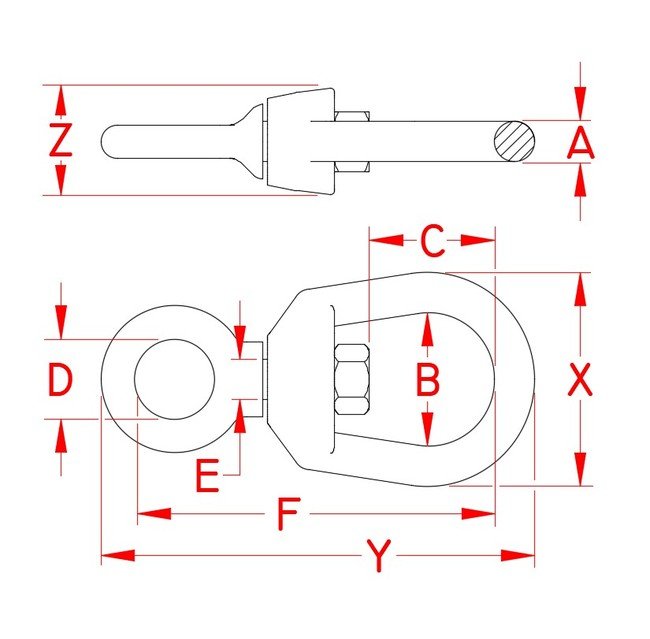

Specifications Dimension A

3/8 in

Specifications Dimension B

1.25 in

Specifications Dimension C

1.06 in

Specifications Dimension D

1.00 in

Specifications Dimension E

0.50 in

Specifications Dimension F

3.74 in

Specifications Dimension X

2.00 in

Specifications Dimension Y

4.50 in

Specifications Dimension Z

0.88 in

Specifications Fabrication Type

Drop Forged

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

Class 1 | Fed. Spec. RR-C-271F | MIL-DTL-32655 | Type VII

Specifications Suncor Exclusive

Yes

Specifications Weight

0.55 lb

Specifications Working Load Limit Wll

3,400 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
