Suncor Stainless Steel Hoist Anchor Assembly

Suncor Stainless Steel Hoist Anchor Assembly

SKU:STA-596b6e

High-quality stainless steel hoist assembly for versatile lifting applications.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Suncor Stainless Steel Hoist Anchor Assembly

Suncor Stainless Steel Hoist Anchor Assembly

$49.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Hoist Anchor Assembly

Suncor Stainless Steel Hoist Anchor Assembly

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

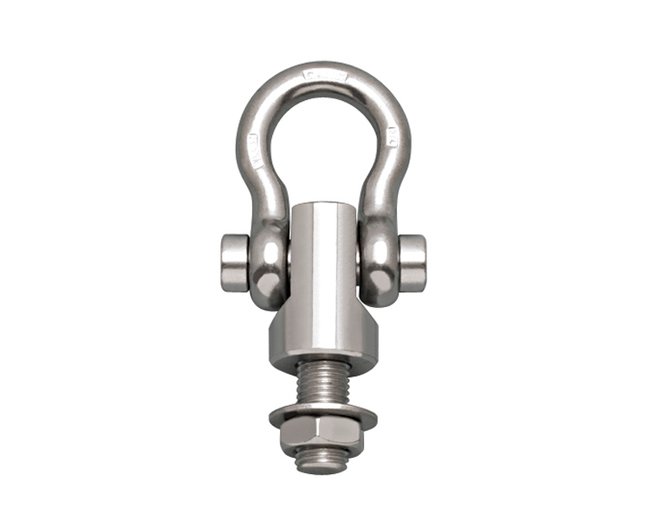

The Suncor Stainless Steel Hoist Anchor Assembly is a complete lifting solution featuring a grade 316 stainless steel construction for exceptional corrosion resistance and durability. This assembly includes the hoist anchor base, fixed shackle with a 180-degree pivoting capability, threaded rod, washer, and nut. Designed with precision machining and drop forging, this assembly guarantees a secure and efficient attachment for various lifting applications. The anchor base comes in multiple sizes from 1/4" to 1", providing versatility and reliability in lifting operations. Securely fasten objects with no natural attachment points using the set screw mechanism, ensuring safety and ease of use.

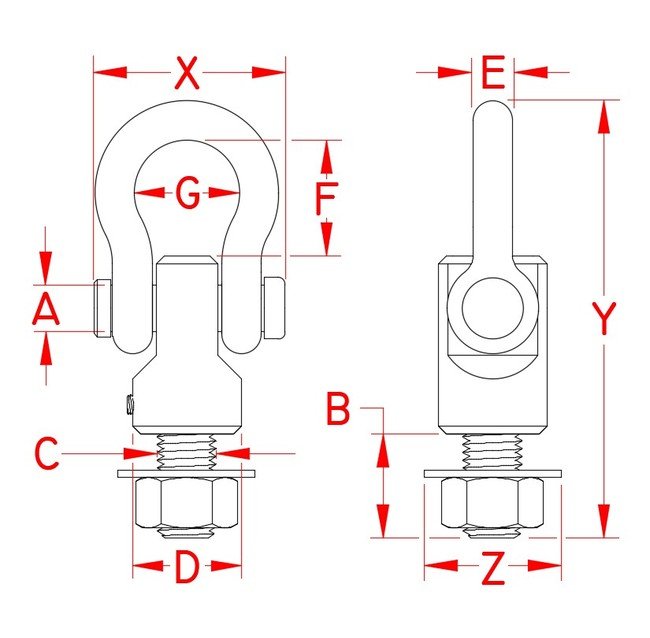

Product Specifications

Specifications Dimension A
0.50 in
Specifications Dimension B
1.10 in
Specifications Dimension C
5/8"-11
Specifications Dimension D
1.38 in
Specifications Dimension E
0.43 in
Specifications Dimension F
1.42 in
Specifications Dimension G
1.14 in
Specifications Dimension X
2.42 in
Specifications Dimension Y
5.04 in
Specifications Dimension Z
1.50 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Size
7/16 in
Specifications Suncor Exclusive
Yes
Specifications Weight
1.21 lb
Specifications Working Load Limit Wll
2000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
