Suncor Stainless Steel Hoist Anchor Base

Suncor Stainless Steel Hoist Anchor Base

SKU:STA-139049

Versatile Suncor Stainless Steel Hoist Anchor Base for secure lifting point attachments. Grade 316 stainless steel, various sizes, 1500 lb WLL, customizable options.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor Stainless Steel Hoist Anchor Base

Suncor Stainless Steel Hoist Anchor Base

$29.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Hoist Anchor Base

Suncor Stainless Steel Hoist Anchor Base

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

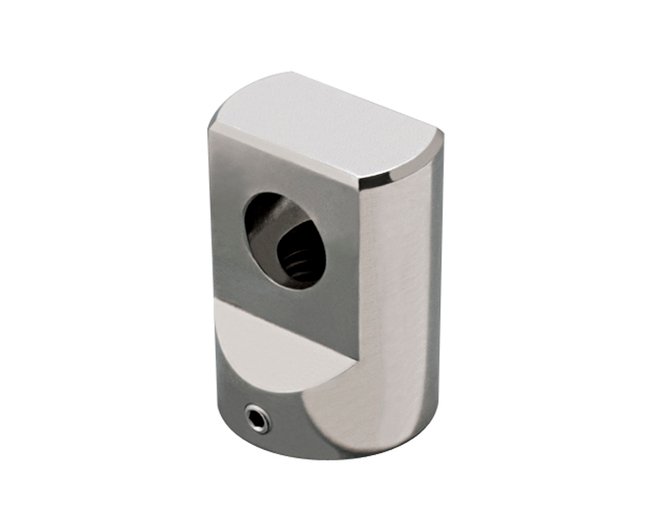

The Suncor Stainless Steel Hoist Anchor Base is a versatile solution for attaching lifting points securely to objects lacking natural attachments. Crafted from grade 316 stainless steel, this base ensures exceptional corrosion resistance and longevity. Available in sizes from 1/4" to 1", with a 3/8" size variant offering a Working Load Limit (WLL) of 1500 lb, it caters to a wide range of lifting applications. The base features a set screw for stud attachment, a 180-degree pivoting shackle for flexibility, and the ability to lock the base into position, providing optimal motion range. Additionally, Suncor offers customization options for stud lengths, nuts, washers, shackles, and pin styles to suit individual needs.

Product Specifications

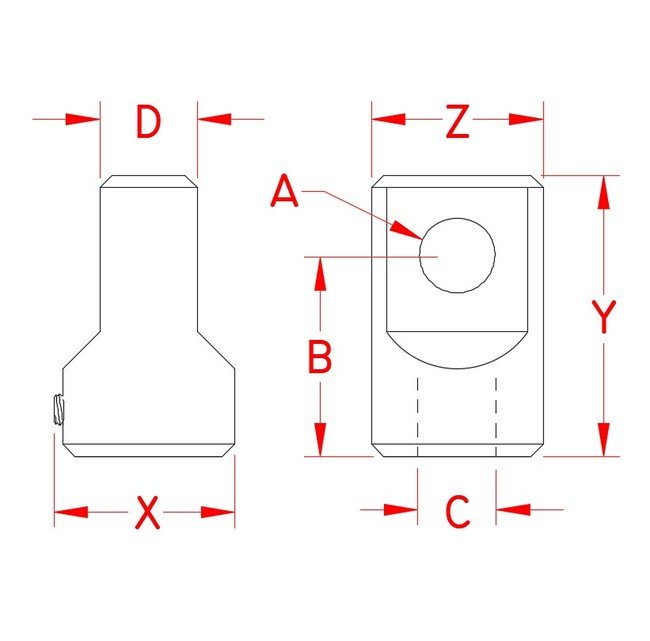

Specifications Dimension A
0.44 in
Specifications Dimension B
1.50 in
Specifications Dimension C
1/2"-13
Specifications Dimension D
0.60 in
Specifications Dimension X
1.32 in
Specifications Dimension Y
2.00 in
Specifications Dimension Z
1.25 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Size
3/8 in
Specifications Suncor Exclusive
Yes
Specifications Weight
0.46 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
