Suncor Stainless Steel Hoist Anchor Base Assembly

Suncor Stainless Steel Hoist Anchor Base Assembly

SKU:STA-30f6c4

Enhance lifting efficiency with the durable Suncor Stainless Steel Hoist Anchor Base Assembly. Corrosion-resistant grade 316 stainless steel construction for lasting performance.

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

Suncor Stainless Steel Hoist Anchor Base Assembly

Suncor Stainless Steel Hoist Anchor Base Assembly

$89.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Hoist Anchor Base Assembly

Suncor Stainless Steel Hoist Anchor Base Assembly

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

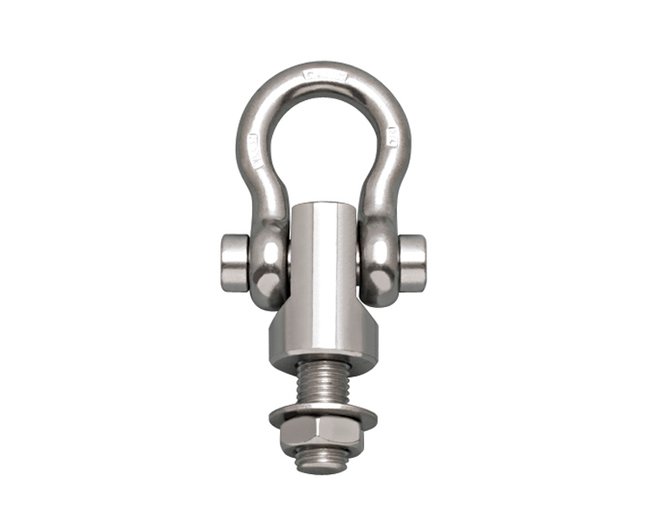

Upgrade your lifting operations with the Suncor Stainless Steel Hoist Anchor Base Assembly. Crafted from grade 316 stainless steel for superior corrosion resistance, this assembly includes the anchor base, fixed shackle, threaded rod, washer, and nut. The base features a convenient set screw for secure attachment, while the shackle offers a 180-degree pivoting capability, providing optimal versatility. With a Working Load Limit of 3000 lb and precise fabrication, this assembly ensures durability and reliability for a wide range of lifting applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

Product Specifications

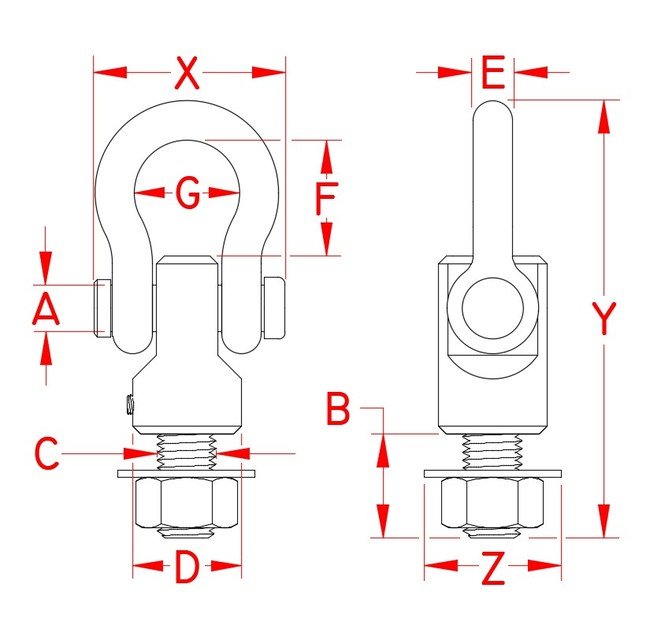

Specifications Dimension A
0.63 in
Specifications Dimension B
1.32 in
Specifications Dimension C
3/4"-10
Specifications Dimension D
1.38 in
Specifications Dimension E
0.50 in
Specifications Dimension F
1.47 in
Specifications Dimension G
1.33 in
Specifications Dimension X
2.67 in
Specifications Dimension Y
5.68 in
Specifications Dimension Z
1.87 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Size
1/2 in
Specifications Suncor Exclusive
Yes
Specifications Weight
1.58 lb
Specifications Working Load Limit Wll
3000 lb
