Suncor Stainless Steel Hoist Anchor Base Assembly

Name: Suncor Stainless Steel Hoist Anchor Base Assembly
Brand: Suncor Stainless, Inc.
SKU: STA-05d8c6
Price: 59.99 USD
Availability: OutOfStock

SKU:STA-05d8c6

Durable Suncor Stainless Steel Hoist Assembly for versatile and secure lifting applications.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

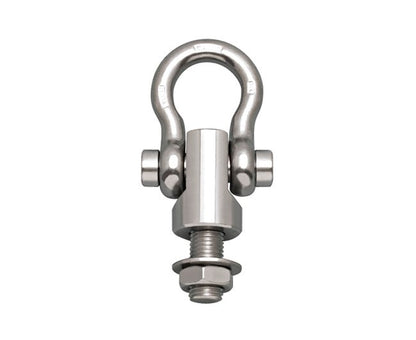

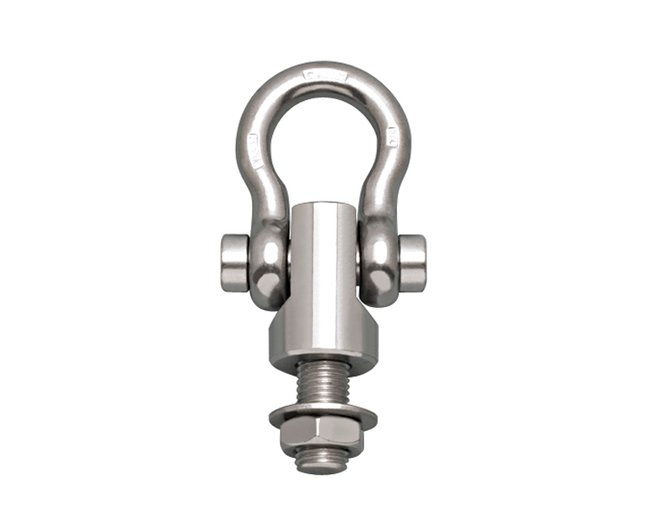

Invest in the Suncor Stainless Steel Hoist Anchor Base Assembly for a durable and corrosion-resistant solution. Made from grade 316 stainless steel, this assembly includes a fixed shackle, threaded rod, washer, and nut. With a 180-degree pivoting shackle for versatile lifting applications, it offers a secure and efficient way to attach lifting points to various objects. The assembly's specifications meet stringent industry requirements, ensuring reliability and performance in demanding environments.

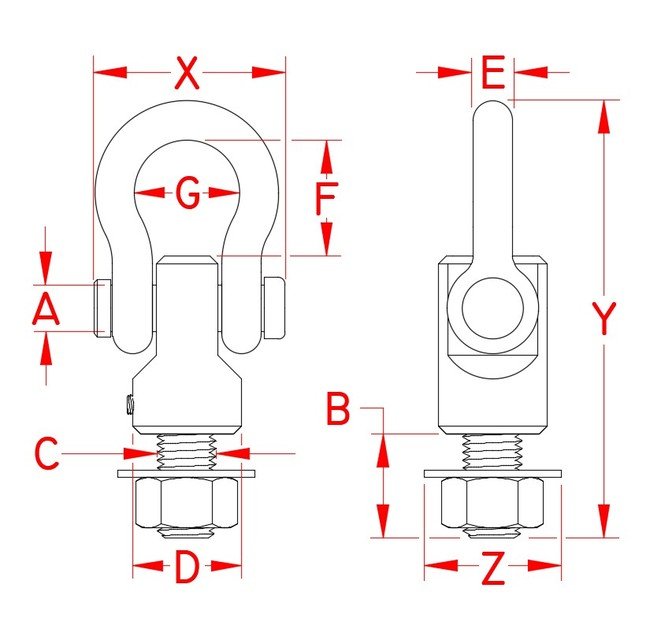

Product Specifications

Specifications Dimension A

0.38 in

Specifications Dimension B

0.78 in

Specifications Dimension C

7/16"-14

Specifications Dimension D

0.88 in

Specifications Dimension E

0.29 in

Specifications Dimension F

0.95 in

Specifications Dimension G

0.81 in

Specifications Dimension X

1.79 in

Specifications Dimension Y

3.76 in

Specifications Dimension Z

1.12 in

Specifications Fabrication Type

Drop Forged | Precision Machined

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Size

5/16 in

Specifications Suncor Exclusive

Yes

Specifications Weight

0.41 lb

Specifications Working Load Limit Wll

1,300 lb

CAGE

1CXX6

NAICS

332999

PSC

5340
