Suncor Stainless Steel Hoist Assembly Kit

Suncor Stainless Steel Hoist Assembly Kit

SKU:STA-e914a0

Secure, durable, and versatile stainless steel hoist assembly kit for efficient lifting applications.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Suncor Stainless Steel Hoist Assembly Kit

Suncor Stainless Steel Hoist Assembly Kit

$39.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Hoist Assembly Kit

Suncor Stainless Steel Hoist Assembly Kit

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

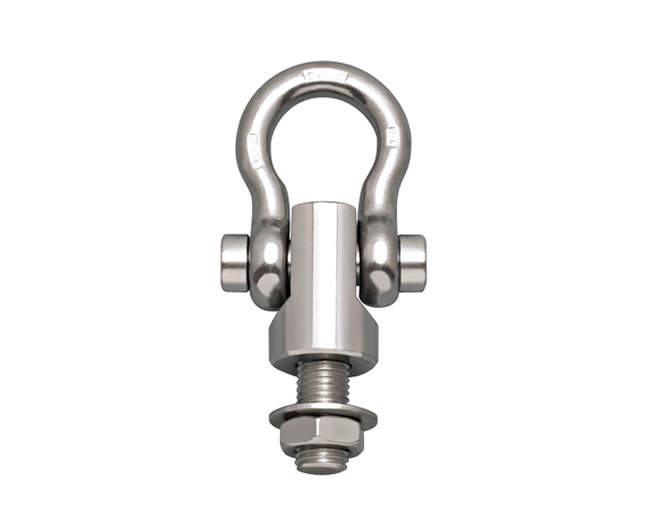

The Suncor Stainless Steel Hoist Assembly Kit is a complete solution for secure lifting applications. Crafted from grade 316 stainless steel, this kit includes the hoist anchor base, threaded rod, fixed shackle, washer, and nut for superior corrosion resistance and durability. The anchor base, featuring a set screw for sturdy attachment, allows for versatile lifting point connections. The 180-degree pivoting shackle ensures optimal flexibility, while the base's adjustable positioning offers a full range of motion. Available in sizes ranging from 1/4'' to 1'', this assembly kit caters to a wide array of lifting needs, making it a reliable choice for both consumer and institutional buyers.

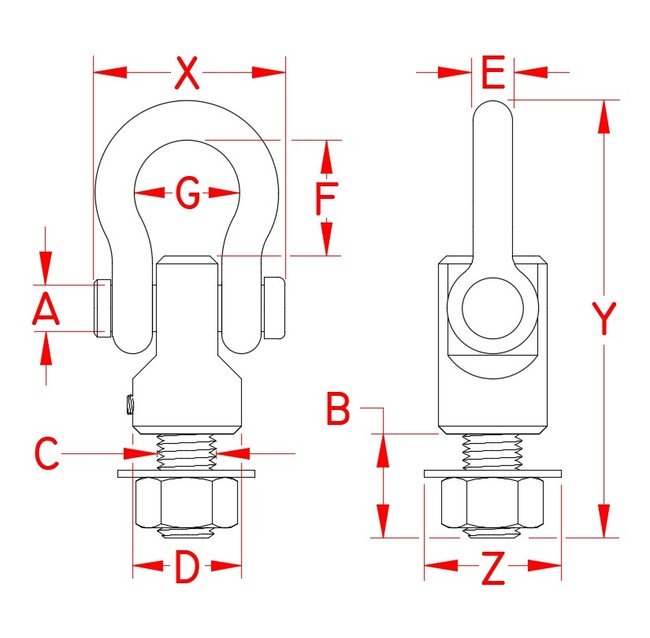

Product Specifications

Specifications Dimension A
0.31 in
Specifications Dimension B
0.64 in
Specifications Dimension C
3/8"-16
Specifications Dimension D
0.75 in
Specifications Dimension E
0.25 in
Specifications Dimension F
0.91 in
Specifications Dimension G
0.79 in
Specifications Dimension X
1.30 in
Specifications Dimension Y
3.18 in
Specifications Dimension Z
0.87 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Size
1/4 in
Specifications Suncor Exclusive
Yes
Specifications Weight
0.26 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
