Suncor Stainless Steel Lifting Chain Grade 50 - 1/4 in

Name: Suncor Stainless Steel Lifting Chain Grade 50 - 1/4 in
Brand: Lexco Cable Manufacturing
SKU: CHA-f9fd1a
Price: 49.99 USD
Availability: OutOfStock

SKU:CHA-f9fd1a

Premium Suncor Stainless Steel Lifting Chain - Grade 50, WLL 2,200 lb, BL 8,800 lb. MIL-DTL-32655 compliant.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

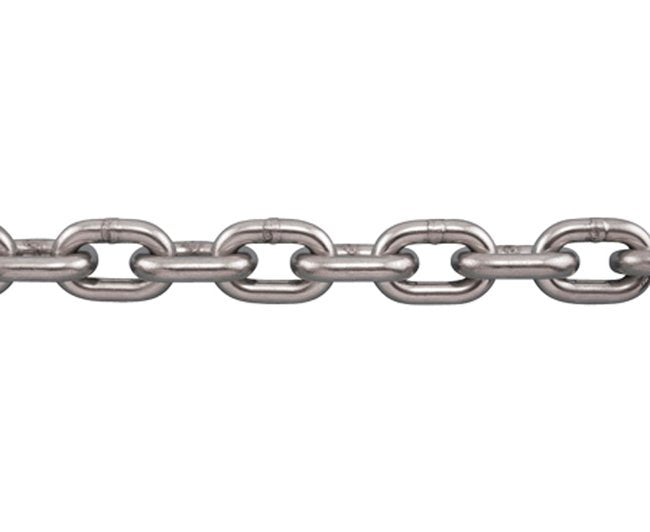

The Suncor Stainless Steel S5 Grade 50 Lifting Chain is precision-calibrated to grade 80 dimensions, ensuring reliable performance for overhead lifting applications. With a Working Load Limit (WLL) of 2,200 lb and a Basic Load (BL) of 8,800 lb, this chain offers exceptional strength and durability. Compliant with MIL-DTL-32655 standards, each chain is crafted from high-grade 316L stainless steel for superior corrosion resistance. Trusted by institutional and government buyers for its safety and quality.

Product Specifications

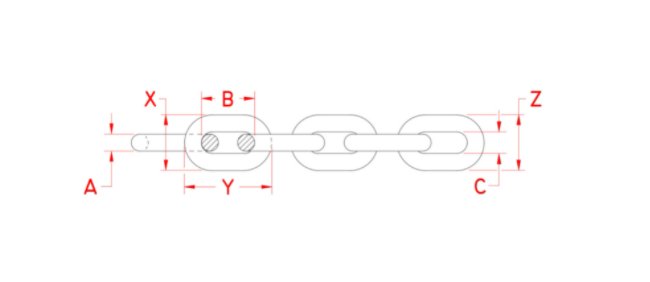

Dimensions In Dimension A

0.28 in

Dimensions In Dimension B

0.85 in

Dimensions In Dimension C

0.38 in

Dimensions In Height X

0.97 in

Dimensions In Length Y

1.38 in

Dimensions In Width Z

0.97 in

Note Note

Calibrated suncorÂ® grade 50 lifting chain, made to grade 80 dimensions. meets the requirements of: MIL-DTL-32655. never exceed working load limit.Working loads are based on gradual pull and not shock loads. make sure that all components in your assembly are overhead lifting rated andHave the same working loads. All dimensions are nominal (Â± 3%) and are subject to change without notice.Rated for overhead lifting

Specifications Basic Load Bl

8,800 lb

Specifications Carton Quantity

275

Specifications Each Quantity

Specifications Grade

316L Stainless Steel

Specifications Industry Standards

MIL-DTL-32655

Specifications Inner Quantity

Specifications Package Type

Polybag

Specifications Size

1/4 in | 9/32

Specifications Upc Code

791506045861

Specifications Weight Wt

0.67 lb/ft

Specifications Working Load Limit Wll

2,200 lb

CAGE

0T9L4

NAICS

332510

PSC

4030
