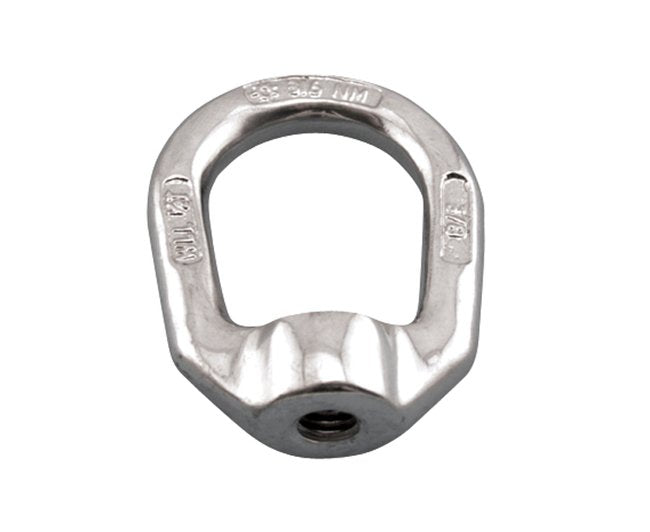

Suncor Stainless Steel Lifting Eye Nut - 316-NM Grade, UNC Thread, 3,440 lb WLL
Suncor Stainless Steel Lifting Eye Nut - 316-NM Grade, UNC Thread, 3,440 lb WLL
SKU:STA-85221a
Premium stainless steel Lifting Eye Nut with 3,440 lb WLL, ideal for marine and industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Suncor Stainless Steel Lifting Eye Nut - 316-NM Grade, UNC Thread, 3,440 lb WLL
$29.99
Quantity: 1
Claim Your Seller Account
Suncor Stainless Steel Lifting Eye Nut - 316-NM Grade, UNC Thread, 3,440 lb WLL
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Suncor Stainless Steel Lifting Eye Nut is a robust solution for marine and industrial applications. Crafted from premium grade 316-NM stainless steel with UNC threading, this eye nut offers superior corrosion resistance and durability. With a Working Load Limit (WLL) of 3,440 lb, it ensures reliable performance in various lifting operations. This drop-forged eye nut complies with ASME B30.26 standards, making it ideal for projects requiring precision and strength.
Product Specifications

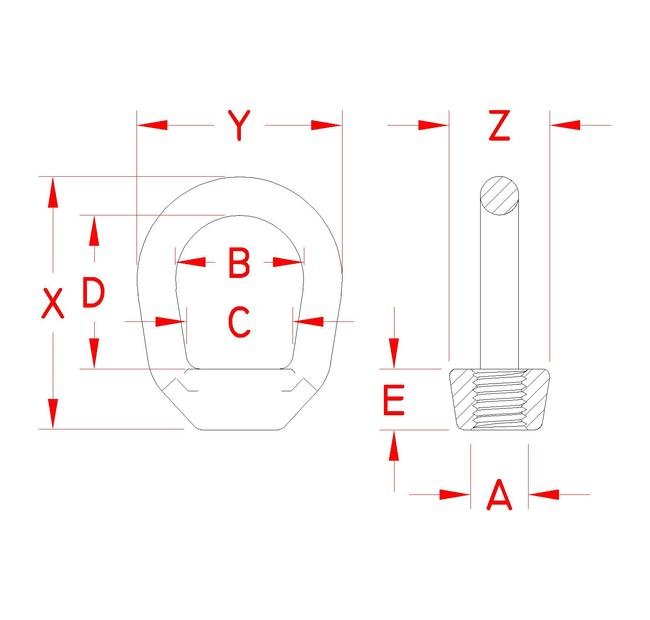

Specifications Dimension A
5/8 in
Specifications Dimension B
1.50 in
Specifications Dimension C
1.19 in
Specifications Dimension D
2.00 in
Specifications Dimension E
0.69 in
Specifications Dimension X
3.18 in
Specifications Dimension Y
2.50 in
Specifications Dimension Z
1.15 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.566 lb
Specifications Working Load Limit Wll
3,440 lb
CAGE
1CXX6
NAICS
332722
PSC
5310
