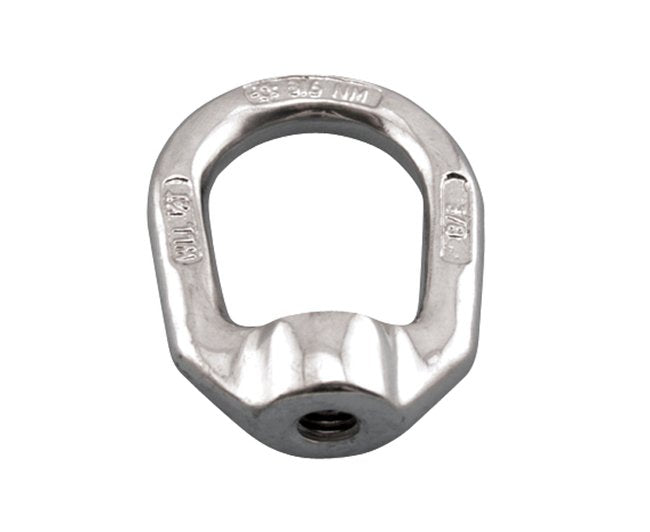

Suncor Stainless Steel Lifting Eye Nut - 316-NM UNC Thread
Suncor Stainless Steel Lifting Eye Nut - 316-NM UNC Thread
SKU:STA-22245d
Suncor Stainless Steel Lifting Eye Nut - Grade 316-NM, UNC Thread, ASME B30.26 Compliant
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Suncor Stainless Steel Lifting Eye Nut - 316-NM UNC Thread
$12.99
Quantity: 1
Claim Your Seller Account
Suncor Stainless Steel Lifting Eye Nut - 316-NM UNC Thread
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Equip your projects with the Suncor Stainless Steel Lifting Eye Nut, featuring UNC thread and crafted from grade 316-NM stainless steel for superior corrosion resistance. With sizes from 1/4" to 3/4", this durable eye nut with a Working Load Limit of 780 lb is ideal for marine and industrial applications. Drop forged to meet ASME B30.26 standard, load rated, and exclusively offered by Suncor. Trust in its reliability for heavy-duty lifting tasks.

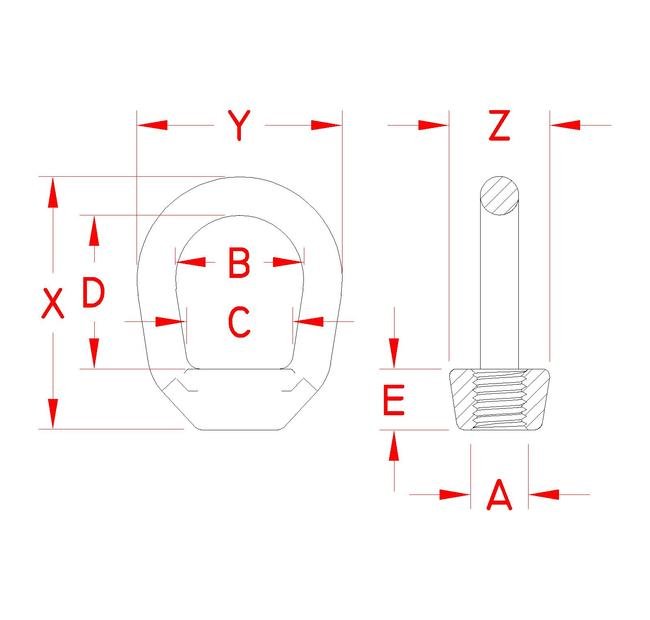

Product Specifications
Specifications Dimension A
5/16 in
Specifications Dimension B
0.75 in
Specifications Dimension C
0.59 in
Specifications Dimension D
1.06 in
Specifications Dimension E
0.38 in
Specifications Dimension X
1.70 in
Specifications Dimension Y
1.26 in
Specifications Dimension Z
0.58 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.08 lb
Specifications Working Load Limit Wll
780 lb
CAGE
1CXX6
NAICS
332722
PSC
5310
