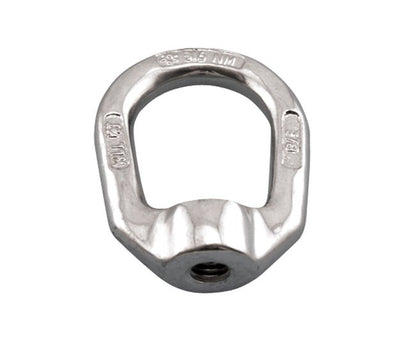

Suncor Stainless Steel Lifting Eye Nut 316-NM UNC Thread
Suncor Stainless Steel Lifting Eye Nut 316-NM UNC Thread
SKU:STA-20bfee
Highly durable Suncor Stainless Steel Lifting Eye Nut, Grade 316-NM. Ideal for marine and industrial use. Exceeds ASME B30.26 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Suncor Stainless Steel Lifting Eye Nut in grade 316-NM is a premium choice for marine and industrial applications. This eye nut, featuring ANSI/ASME B30.26 compliance, guarantees superior corrosion resistance and durability. With a load factor of 460 lb and precise dimensions ranging from 1/4" to 3/4", it's a reliable choice for varied projects. Crafted through drop forging, this imported eye nut meets the highest standards, making it a Suncor exclusive product.
Product Specifications

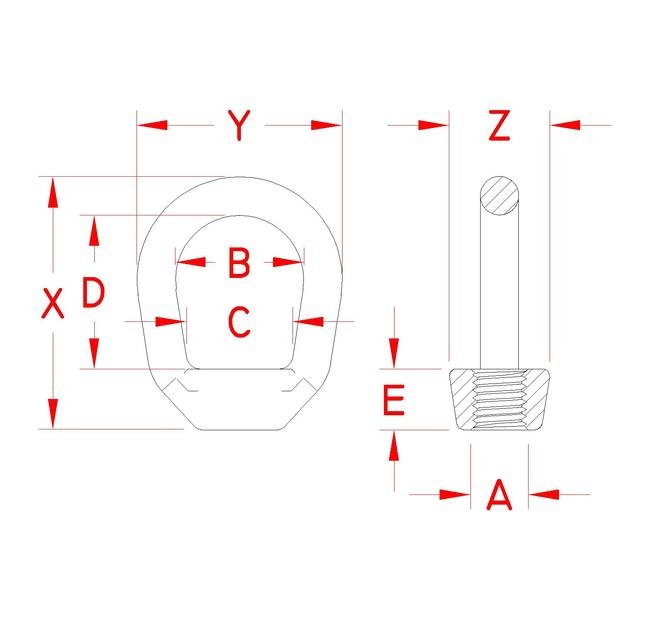

Specifications Dimension A
1/4 in
Specifications Dimension B
0.75 in
Specifications Dimension C
0.59 in
Specifications Dimension D
1.06 in
Specifications Dimension E
0.38 in
Specifications Dimension X
1.70 in
Specifications Dimension Y
1.26 in
Specifications Dimension Z
0.58 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.078 lb
Specifications Working Load Limit Wll
460 lb
CAGE
1CXX6
NAICS
332722
PSC
5310
