Suncor Stainless Steel Plain Eye Bolt UNC Thread

Suncor Stainless Steel Plain Eye Bolt UNC Thread

SKU:STA-e6ded9

Premium Suncor Stainless Steel Plain Eye Bolt with UNC thread, ASME B30.26 compliant for marine and industrial applications.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor Stainless Steel Plain Eye Bolt UNC Thread

Suncor Stainless Steel Plain Eye Bolt UNC Thread

$29.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Plain Eye Bolt UNC Thread

Suncor Stainless Steel Plain Eye Bolt UNC Thread

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

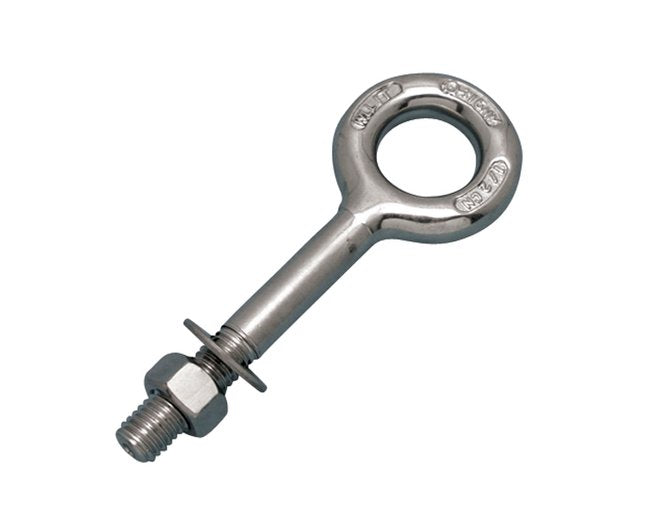

The Suncor Stainless Steel Plain Eye Bolt with UNC thread is a premium-grade 316-NM stainless steel bolt designed for superior corrosion resistance and unmatched durability. This eye bolt comes with one nut and one washer, meeting ASME B30.26 specifications. With a working load limit of 9,370 lb, it is ideal for marine and industrial applications, offering reliability and strength for a wide range of projects. Precision machined and drop forged, this eye bolt ensures safety and performance while fitting sizes from 1/4" to 1".

Product Specifications

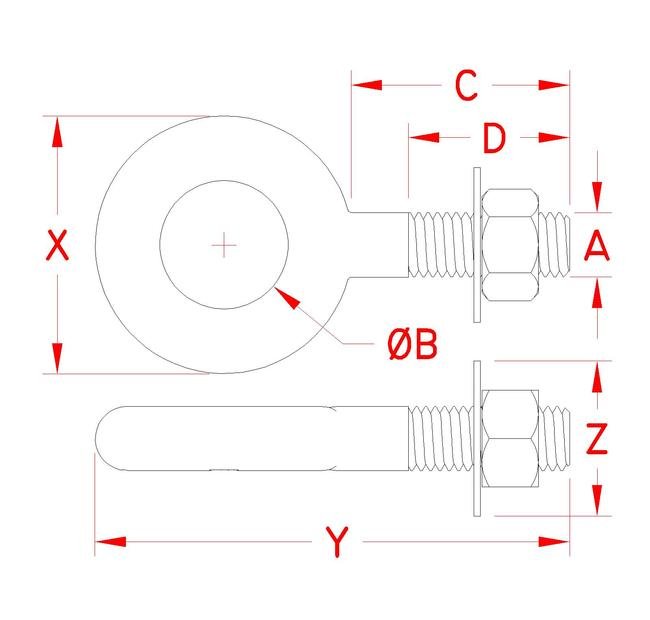

Specifications Dimension A
1 in
Specifications Dimension B
2.00 in
Specifications Dimension C
6.00 in
Specifications Dimension D
3.00 in
Specifications Dimension X
4.00 in
Specifications Dimension Y
10.25 in
Specifications Dimension Z
1.72 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
3.96 lb
Specifications Working Load Limit Wll
9,370 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
