Suncor Stainless Steel S4 NACM Industrial Chain 5/16in

Suncor Stainless Steel S4 NACM Industrial Chain 5/16in

CHA-177930

High-strength Suncor Stainless Steel S4 NACM Chain for industrial & marine applications. Compliant with MIL-DTL-32655 & NACM standards.

$39.99
$39.99
Sale

Initiate Order

Suncor Stainless Steel S4 NACM Industrial Chain 5/16in

Suncor Stainless Steel S4 NACM Industrial Chain 5/16in

$39.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel S4 NACM Industrial Chain 5/16in

Suncor Stainless Steel S4 NACM Industrial Chain 5/16in

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

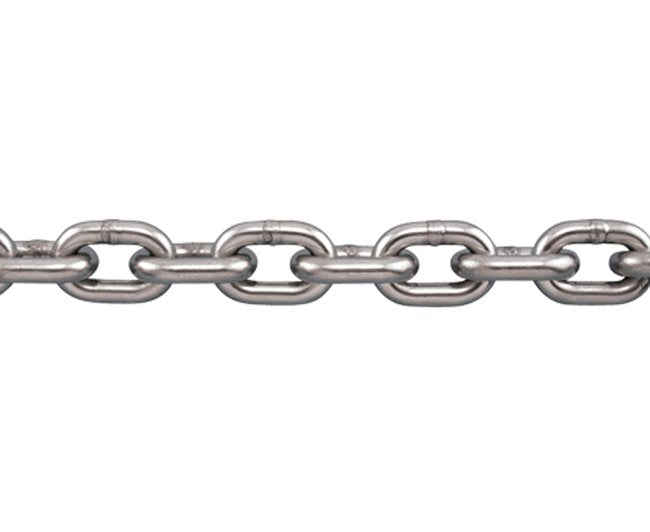

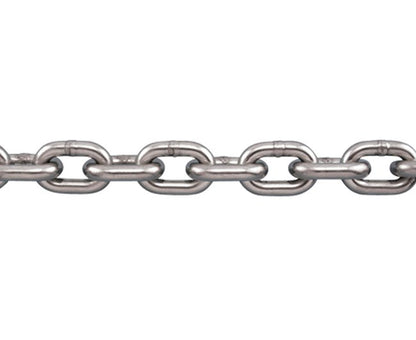

The Suncor Stainless Steel S4 NACM Industrial Chain is expertly crafted in the USA to 'G4' dimensions, offering exceptional strength and durability for a wide range of industrial and marine applications. Compliant with MIL-DTL-32655 and NACM standards, this chain boasts a Basic Load (BL) of 9,600 lb and a Working Load Limit (WLL) of 2,400 lb, making it ideal for heavy-duty usage. With precise dimensions and superior quality 316L stainless steel construction, this chain ensures reliable performance and longevity in demanding environments.

Product Specifications

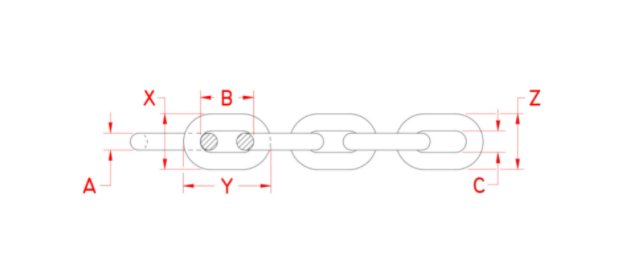

Dimensions In Dimension A
0.32 in
Dimensions In Dimension B
1.02 in
Dimensions In Dimension C
0.47 in
Dimensions In Height X
1.12 in
Dimensions In Length Y
1.63 in
Dimensions In Width Z
1.12 in
Note Note
Suncor® grade S4 chain is made to "G4" dimensions. meets the requirements of: MIL-DTL-32655. it fits many standard U.S. windlasses and industrialApplications. this chain complies fully with all requirements of the U.S. national association of chain manufacturers’ (nacm’s) specifications.All dimensions are nominal (± 3%) and are subject to change without notice.Meets G4 Size
Specifications Basic Load Bl
9,600 lb
Specifications Carton Quantity
275
Specifications Each Quantity
1
Specifications Grade
316L Stainless Steel
Specifications Industry Standards
MIL-DTL-32655
Specifications Inner Quantity
1
Specifications Package Type
Polybag
Specifications Size
5/16 in
Specifications Upc Code
791506045960
Specifications Weight Wt
0.92 lb/ft
Specifications Working Load Limit Wll
2,400 lb
CAGE
0T9L4
NAICS
332510
PSC
4030
