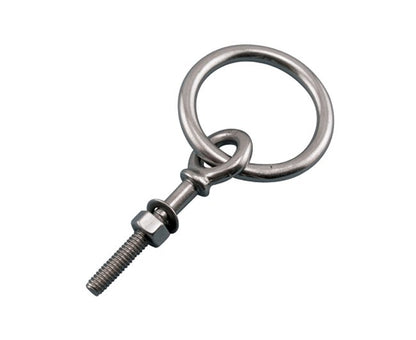

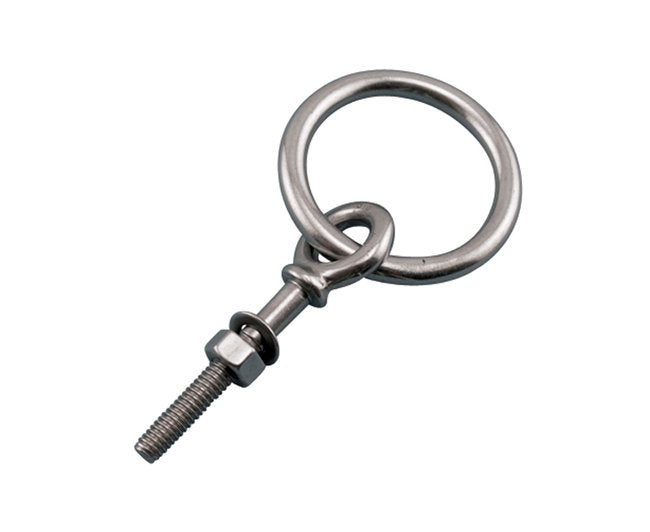

The Suncor Stainless Steel Shoulder Ring Bolt is a reliable and durable fastening solution designed for marine and industrial applications. Made from grade 316 stainless steel, this UNC threaded bolt comes with one nut and one washer. With a working load limit of 1,100 lb and corrosion resistance properties, this ring bolt is ideal for various projects. The drop-forged and wire-formed construction ensures strength and longevity, meeting the highest quality standards for dependable performance.

Product Specifications

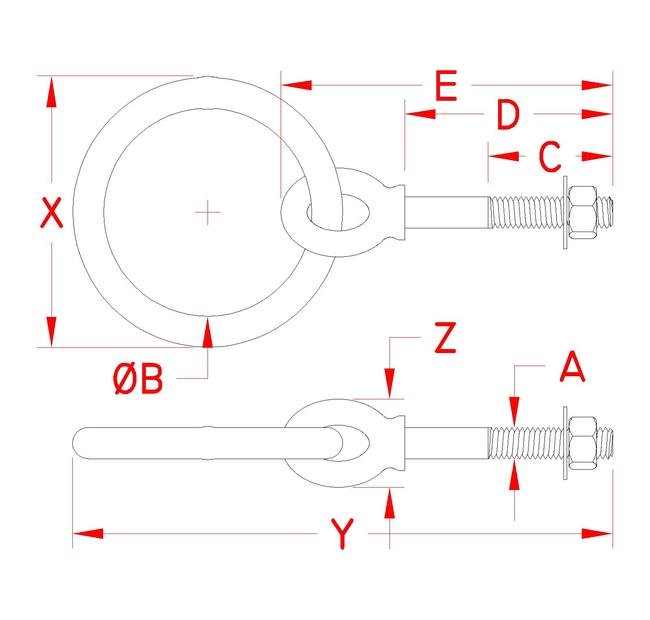

Specifications Dimension A
1/2 in
Specifications Dimension B
3.00 in
Specifications Dimension C
1.50 in
Specifications Dimension D
3.25 in
Specifications Dimension E
5.20 in
Specifications Dimension X
4.00 in
Specifications Dimension Y
8.20 in
Specifications Dimension Z
1.15 in
Specifications Fabrication Type
Drop Forged | Wire Formed
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
1.06 lb
Specifications Working Load Limit Wll
1,100 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
