Suncor Stainless Steel Shoulder Ring Bolt - UNC Thread, Grade 316, 1/4" to 3/4"

Name: Suncor Stainless Steel Shoulder Ring Bolt - UNC Thread, Grade 316, 1/4" to 3/4"
Brand: Suncor Stainless, Inc.
SKU: STA-5bcb0f
Price: 14.99 USD
Availability: OutOfStock

SKU:STA-5bcb0f

Durable Suncor Stainless Steel Shoulder Ring Bolt with UNC thread, grade 316 for marine and industrial use.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

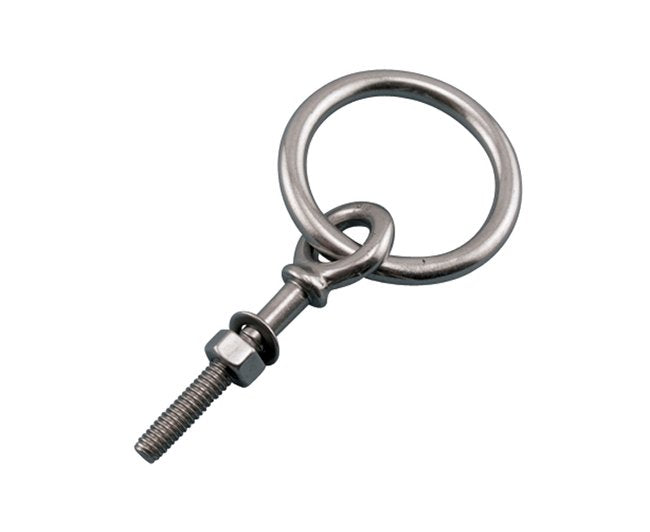

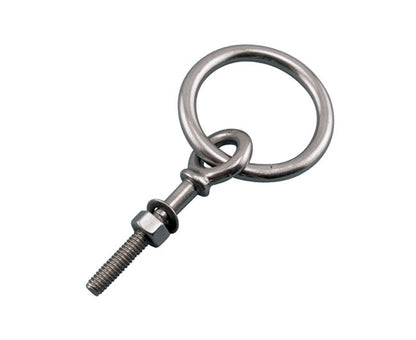

Upgrade your marine and industrial projects with the Suncor Stainless Steel Shoulder Ring Bolt. This bolt, made from grade 316 stainless steel, offers superior corrosion resistance and durability. Each bolt comes with a nut and washer. With sizes ranging from 1/4" to 3/4", this product ensures compatibility with various projects. The shoulder design provides stability and strength, making it ideal for heavy-duty applications.

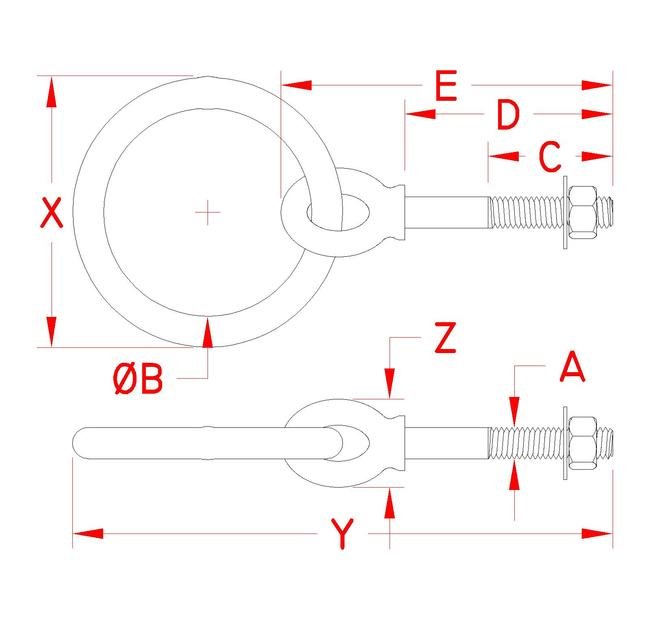

Product Specifications

Specifications Dimension A

5/16 in

Specifications Dimension B

2.00 in

Specifications Dimension C

1.50 in

Specifications Dimension D

2.25 in

Specifications Dimension E

3.50 in

Specifications Dimension X

2.63 in

Specifications Dimension Y

5.40 in

Specifications Dimension Z

0.78 in

Specifications Fabrication Type

Drop Forged | Wire Formed

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Weight

0.27 lb

Specifications Working Load Limit Wll

400 lb

CAGE

1CXX6

NAICS

332722

PSC

5306
