Suncor Stainless Steel Threaded Yoke End - UNC Threads, Grade 316, 1/4 in

Name: Suncor Stainless Steel Threaded Yoke End - UNC Threads, Grade 316, 1/4 in
Brand: Suncor Stainless, Inc.
SKU: STA-883f97
Price: 24.99 USD
Availability: OutOfStock

SKU:STA-883f97

Durable Suncor Stainless Steel Yoke End with UNC Threads - Ideal for Marine & Industrial Settings

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

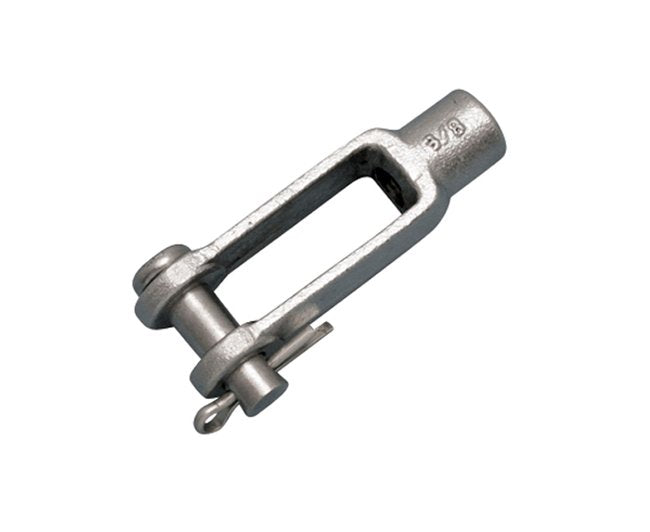

Upgrade your marine and industrial turnbuckle applications with the Suncor Stainless Steel Threaded Yoke End. Crafted from corrosion-resistant grade 316 stainless steel, this yoke end ensures maximum durability. With dimensions ranging from 3/16'' to 3/4'' and a working load limit of 500 lb, it offers precision and reliability. The UNC threads provide secure fastening, making it an ideal choice for various applications in demanding environments.

Product Specifications

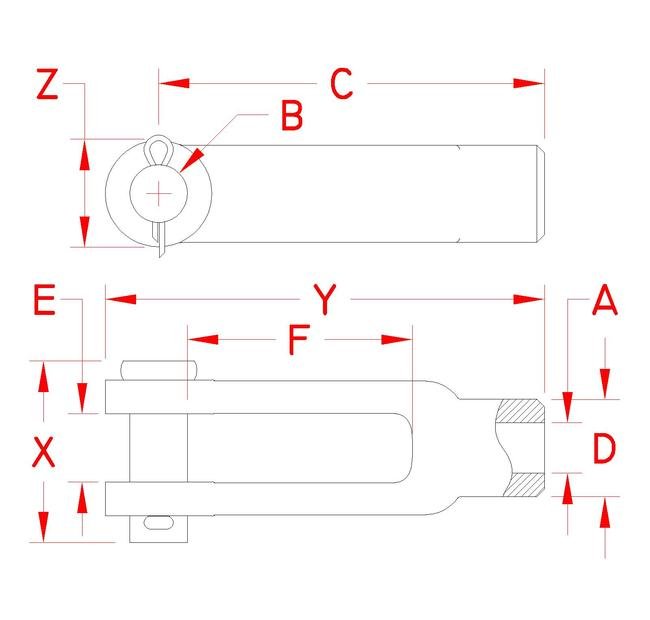

Specifications Dimension A

1/4 in

Specifications Dimension B

0.25 in

Specifications Dimension C

2.00 in

Specifications Dimension D

0.44 in

Specifications Dimension E

0.29 in

Specifications Dimension F

1.08 in

Specifications Dimension X

0.92 in

Specifications Dimension Y

2.32 in

Specifications Dimension Z

0.53 in

Specifications Fabrication Type

Drop Forged | Precision Machined

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Suncor Exclusive

Yes

Specifications Weight

0.1 lb

Specifications Working Load Limit Wll

500 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

Suncor Stainless Steel Threaded Yoke End - UNC Threads, Grade 316, 1/4 in
