Suncor Stainless Steel US Anchor Shackle

Suncor Stainless Steel US Anchor Shackle

SKU:STA-92c904

Premium Suncor Stainless Steel Anchor Shackle, ASME B30.26-2010 Compliant, WLL 6,000 lb, Ideal for Salt Water

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Suncor Stainless Steel US Anchor Shackle

Suncor Stainless Steel US Anchor Shackle

$39.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel US Anchor Shackle

Suncor Stainless Steel US Anchor Shackle

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

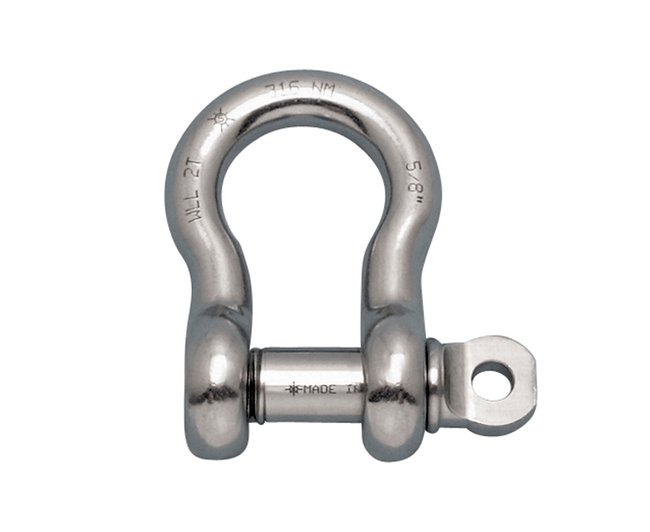

The Suncor Stainless Steel US Anchor Shackle is a top-tier securing solution made from premium grade 316-NM stainless steel and boasting an oversized screw pin for enhanced safety. Designed for durability in salt water environments, this anchor shackle meets the rigorous standards of ASME B30.26-2010 section 26-0 American National Standard and is DFARS compliant. Crafted with precision through drop forging in the USA, this Suncor shackle is fully load-rated with a Working Load Limit (WLL) of 6,000 lb, providing unmatched reliability in critical applications.

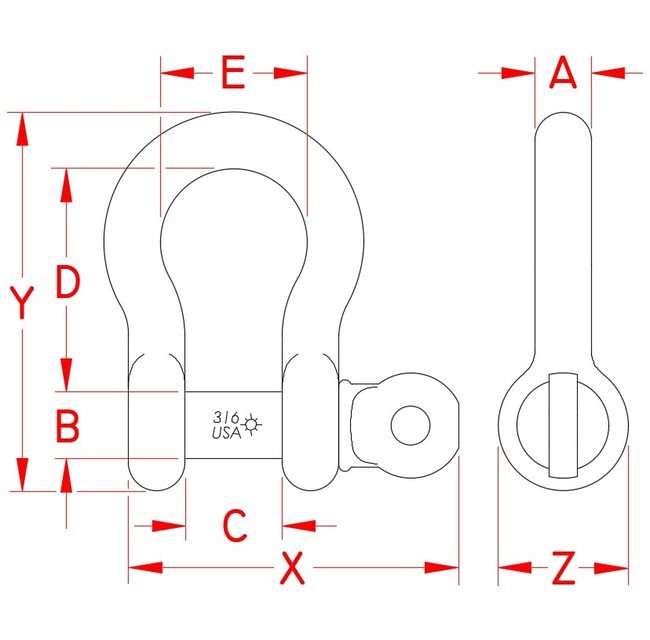

Product Specifications

Specifications Dimension A
7/8 in
Specifications Dimension B
0.88 in
Specifications Dimension C
1.25 in
Specifications Dimension D
2.84 in
Specifications Dimension E
1.90 in
Specifications Dimension X
4.90 in
Specifications Dimension Y
3.90 in
Specifications Dimension Z
1.74 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
2.11 lb
Specifications Working Load Limit Wll
6,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
