Suncor Stainless Steel US Bolt Anchor Shackle

Suncor Stainless Steel US Bolt Anchor Shackle

SKU:STA-ce8c73

Premium-grade Suncor US Bolt Anchor Shackle - ideal for marine use, with a WLL of 1,300 lb. Meets ASME B30.26-2010 and Fed. Spec. RR-C-271 standards.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor Stainless Steel US Bolt Anchor Shackle

Suncor Stainless Steel US Bolt Anchor Shackle

$29.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel US Bolt Anchor Shackle

Suncor Stainless Steel US Bolt Anchor Shackle

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

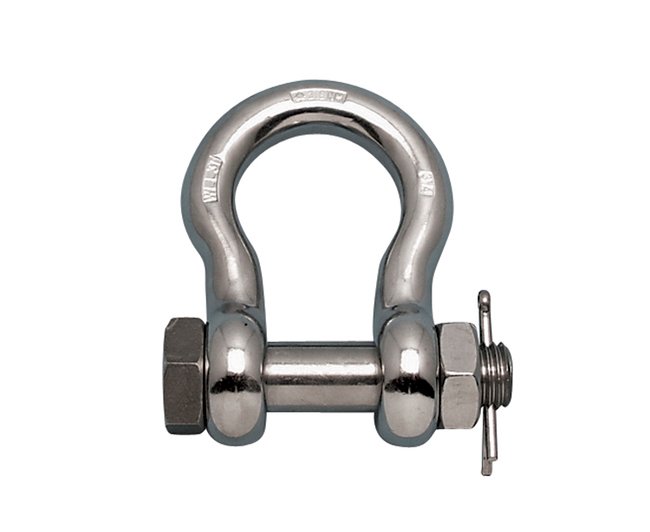

The Suncor Stainless Steel US Bolt Anchor Shackle is expertly crafted in the USA from high-grade 316-NM stainless steel, ensuring exceptional durability and corrosion resistance. Featuring a heavy-duty oversize bolt, this shackle is perfect for marine applications, particularly in saltwater environments. Designed to securely connect anchors to chains or anchor swivels, it comes with a Working Load Limit (WLL) of 1,300 lb, meeting ASME B30.26-2010, Fed. Spec. RR-C-271 Type IVA, Class 3 standards. Weighting just 0.184 lb, this drop-forged shackle is Suncor exclusive, making it a top choice for reliable performance in demanding conditions.

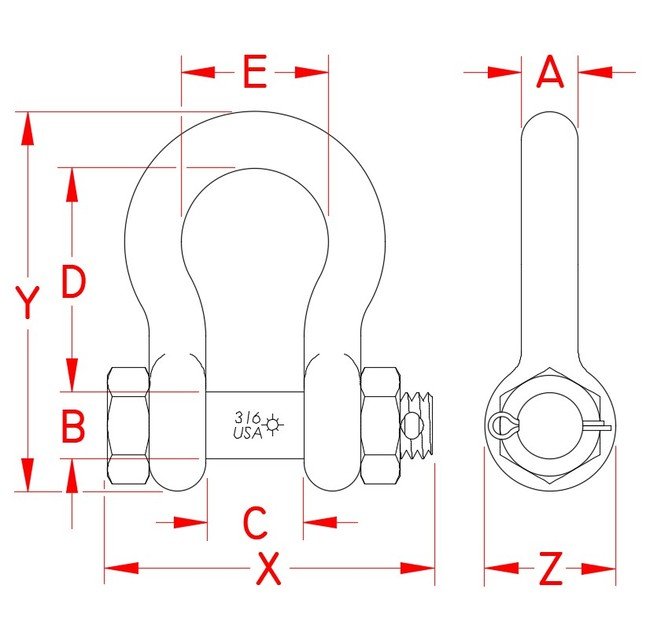

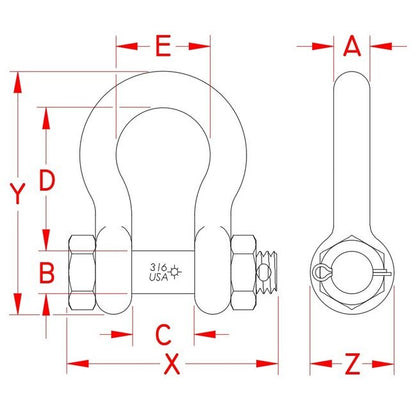

Product Specifications

Specifications Dimension A
5/16 in
Specifications Dimension B
0.38 in
Specifications Dimension C
0.53 in
Specifications Dimension D
1.20 in
Specifications Dimension E
0.80 in
Specifications Dimension X
1.81 in
Specifications Dimension Y
2.07 in
Specifications Dimension Z
0.74 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
0.184 lb
Specifications Working Load Limit Wll
1,300 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
