Suncor Straight D Shackle with Captive Pin - Grade 316 Stainless Steel
Suncor Straight D Shackle with Captive Pin - Grade 316 Stainless Steel
SKU:STA-1c1417
Secure your operations with Suncor's Stainless Steel Straight D Shackle for industrial & marine needs.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

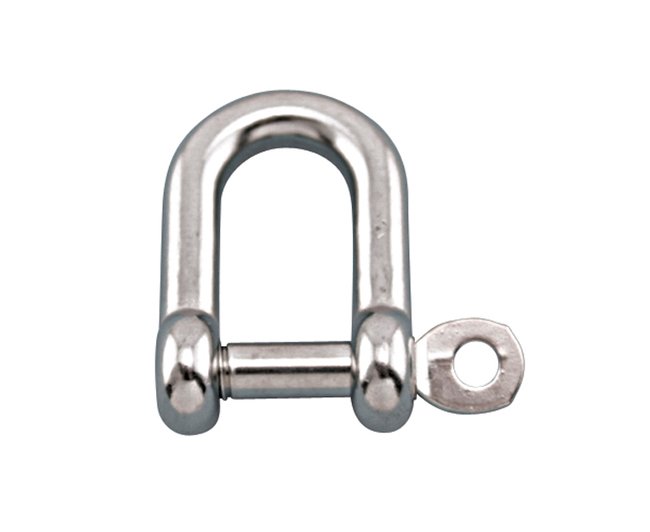

The Suncor Straight D Shackle with Captive Pin offers the ultimate security with its self-locking feature and integral pin design, ensuring the pin stays securely in place during industrial or marine applications. Crafted from high-grade 316 stainless steel, this shackle provides unparalleled corrosion resistance and durability. Available in various sizes from 5/32" to 1/2", it meets the stringent standards of government and institutional procurement, making it a reliable choice for critical operations.

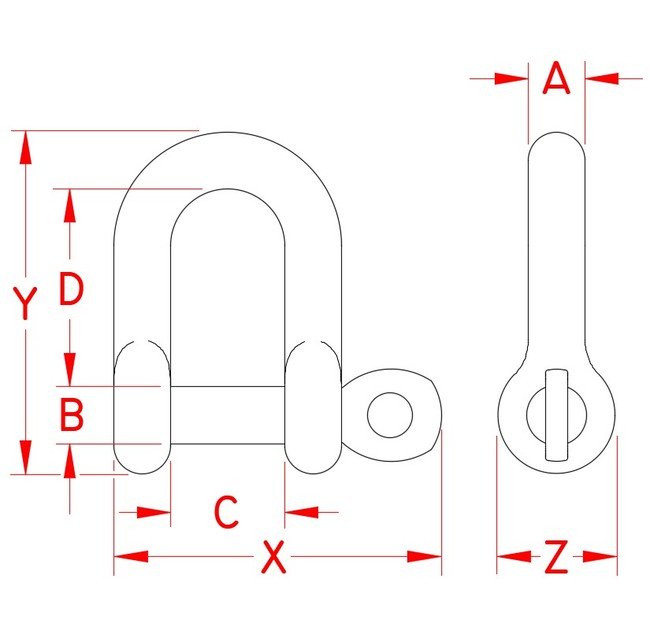

Product Specifications
Specifications Dimension A
5/32 in
Specifications Dimension B
0.17 in
Specifications Dimension C
0.32 in
Specifications Dimension D
0.55 in
Specifications Dimension X
0.91 in
Specifications Dimension Y
0.95 in
Specifications Dimension Z
0.31 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.016 lb
Specifications Working Load Limit Wll
200 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
