Suncor Swage Domehead 316 Stainless Steel Terminal, 1/8"-1/4"
Suncor Swage Domehead 316 Stainless Steel Terminal, 1/8"-1/4"
SKU:STA-997f7e
Premium 316 stainless steel Swage Domehead for 1/8"-1/4" wire sizes. Ideal for marine & architectural applications.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
Suncor Swage Domehead 316 Stainless Steel Terminal, 1/8"-1/4"
$9.99
Quantity: 1
Claim Your Seller Account
Suncor Swage Domehead 316 Stainless Steel Terminal, 1/8"-1/4"
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

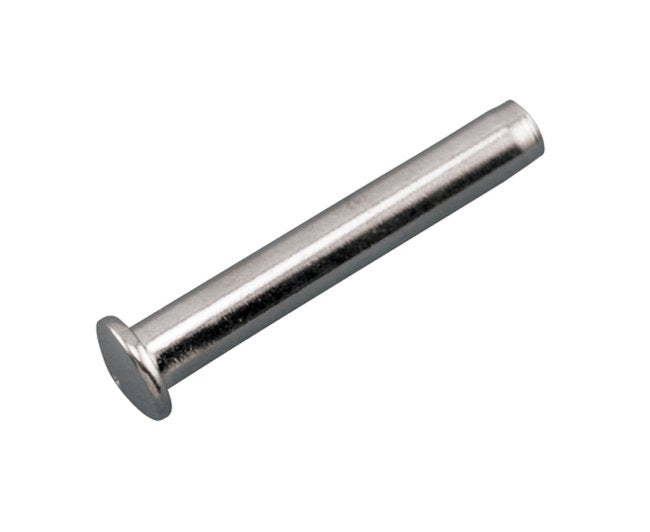

The Suncor Swage Domehead is a premium-grade 316 stainless steel terminal designed to accommodate wire sizes from 1/8" to 1/4". Crafted for marine and architectural wire rope applications, this precision-machined swage terminal ensures optimal corrosion resistance and durability. With dimensions meeting stringent industry standards, including pre and post-swage measurements, this domehead guarantees secure and lasting wire assemblies.
Product Specifications
Specifications After Swage
0.25 in
Specifications Before Swage
0.30 in

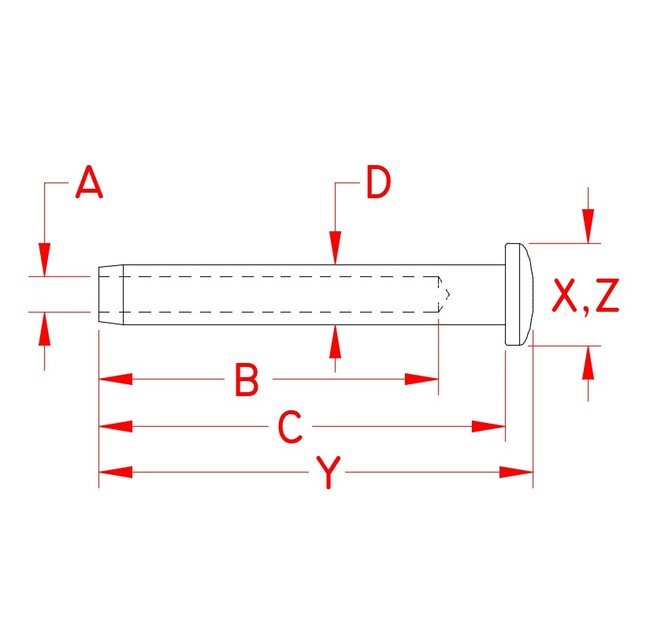

Specifications Dimension A
5/32 in
Specifications Dimension B
1.81 in
Specifications Dimension C
2.05 in
Specifications Dimension X
0.48 in
Specifications Dimension Y
2.31 in
Specifications Dimension Z
0.48 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.03 lb
CAGE
1CXX6
NAICS
332618
PSC
4030
