Suncor UNC Thread Shoulder Eye Bolt - Grade 316 Stainless Steel
Suncor UNC Thread Shoulder Eye Bolt - Grade 316 Stainless Steel
SKU:STA-2b9ecc
Grade 316 Stainless Steel Shoulder Eye Bolt with UNC Thread, ASME B30.26 Compliant, Ideal for Marine and Industrial Applications
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Suncor UNC Thread Shoulder Eye Bolt - Grade 316 Stainless Steel
$29.99
Quantity: 1
Claim Your Seller Account
Suncor UNC Thread Shoulder Eye Bolt - Grade 316 Stainless Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

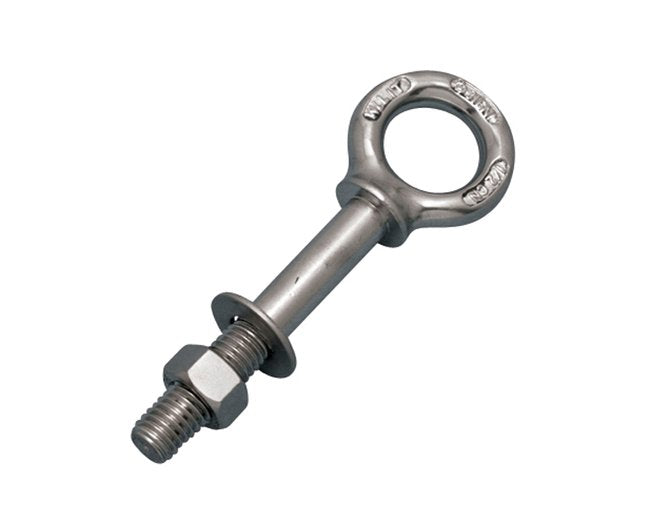

Enhance your projects with the Suncor UNC Thread Shoulder Eye Bolt crafted from grade 316 stainless steel. Designed for corrosion resistance, durability, and performance, this bolt comes with one nut and one washer. Ideal for marine and industrial applications, it meets ASME B30.26 specifications and offers a high Working Load Limit of 9,370 lb. Precision machined and drop forged, this Suncor exclusive product is made with excellence in mind.
Product Specifications

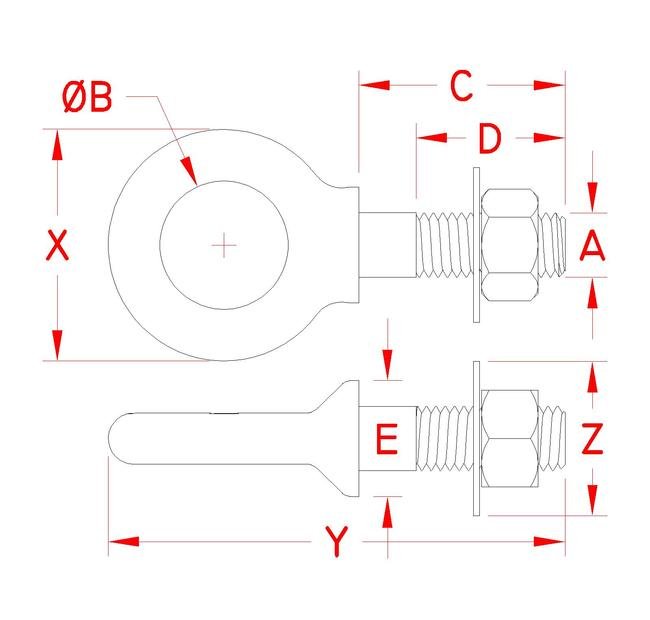

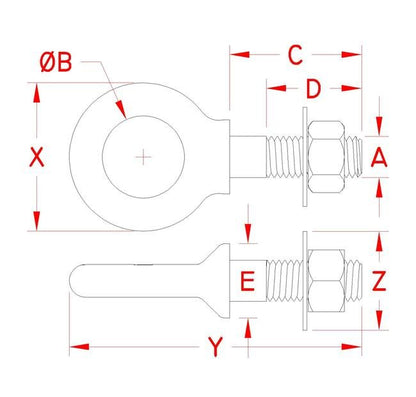

Specifications Dimension A
1 in
Specifications Dimension B
2.00 in
Specifications Dimension C
6.00 in
Specifications Dimension D
3.00 in
Specifications Dimension E
1.83 in
Specifications Dimension X
3.77 in
Specifications Dimension Y
9.92 in
Specifications Dimension Z
1.82 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
3.45 lb
Specifications Working Load Limit Wll
9,370 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
