Suncor UNF Left Hand Mil. Spec Swage Stud

Suncor UNF Left Hand Mil. Spec Swage Stud

SKU:MIL-812906

Suncor UNF Left Hand Mil. Spec Swage Stud - Precision-machined stainless steel terminal meeting MIL-DTL-781 standards. Versatile sizes for various applications.

Regular price $14.99
Regular price Sale price $14.99
Sale

Initiate Order

Suncor UNF Left Hand Mil. Spec Swage Stud

Suncor UNF Left Hand Mil. Spec Swage Stud

$14.99

Quantity: 1

Claim Your Seller Account

Suncor UNF Left Hand Mil. Spec Swage Stud

Suncor UNF Left Hand Mil. Spec Swage Stud

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

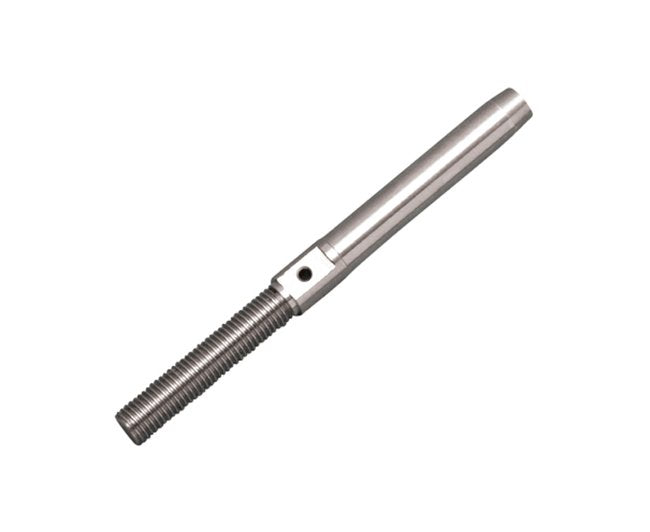

The Suncor UNF Left Hand Mil. Spec Swage Stud is a precision-machined stainless steel terminal that meets stringent military specifications including MIL-DTL-781. Approved for QPL-781, this swage stud assures quality with UNF left-hand threading, available in sizes from 1/16" to 3/8". Made in the USA by Suncor, a trusted brand in the industry, this stud guarantees precision and durability for a wide range of applications.

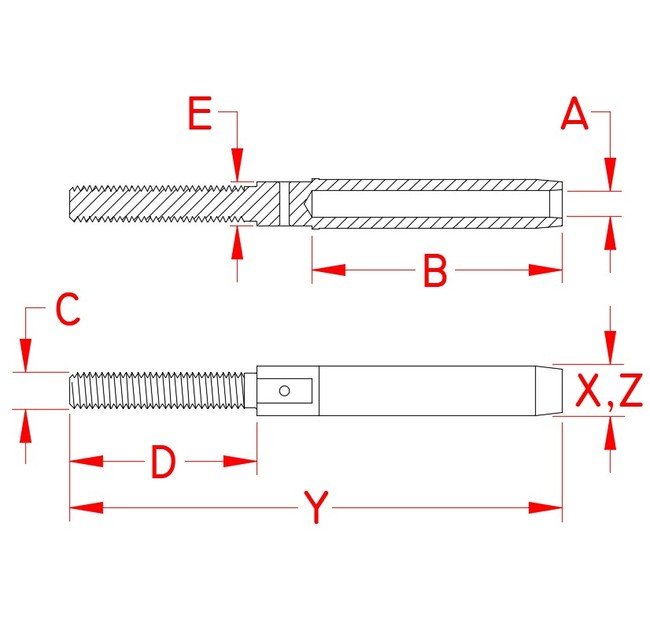

Product Specifications

Specifications Dimension A
3/32 in
Specifications Dimension B
1.26 in
Specifications Dimension C
0.19 in
Specifications Dimension D
1.20 in
Specifications Dimension E
0.19 in
Specifications Dimension X
0.22 in
Specifications Dimension Y
2.88 in
Specifications Dimension Z
0.22 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight
0.02 lb
CAGE
1CXX6
NAICS
332722
PSC
5307
