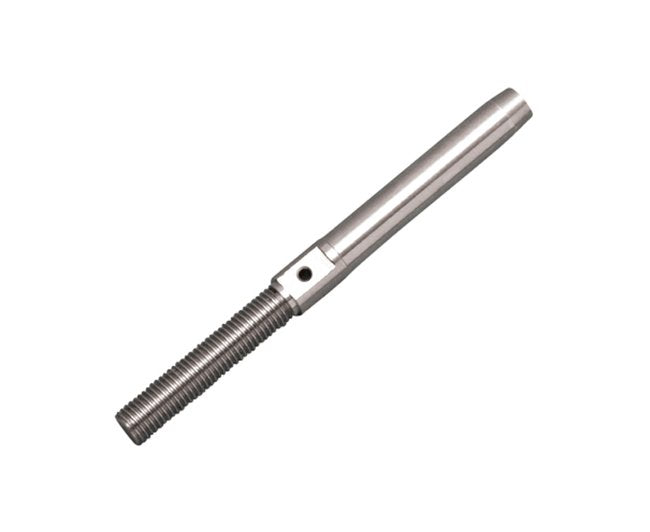

Suncor UNF Left Hand Mil-Spec Swage Stud
Suncor UNF Left Hand Mil-Spec Swage Stud
SKU:MIL-7ffdde
Meet Mil. Spec #MS21259 w/ Suncor's precision-machined stainless steel swage stud. Sizes 1/16"-3/8". Superior quality & durability.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Suncor UNF Left Hand Mil-Spec Swage Stud
$12.99
Quantity: 1
Claim Your Seller Account
Suncor UNF Left Hand Mil-Spec Swage Stud
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Suncor UNF Left Hand Mil-Spec Swage Stud meets stringent military specification #MS21259, ensuring exceptional quality and performance. Compliant with MIL-DTL-781 and listed in QPL-781, this precision-machined stainless steel swage stud features a left-hand UNF thread. Available in various sizes from 1/16" to 3/8", this Made in USA product guarantees reliability and durability for diverse applications requiring top-tier performance.

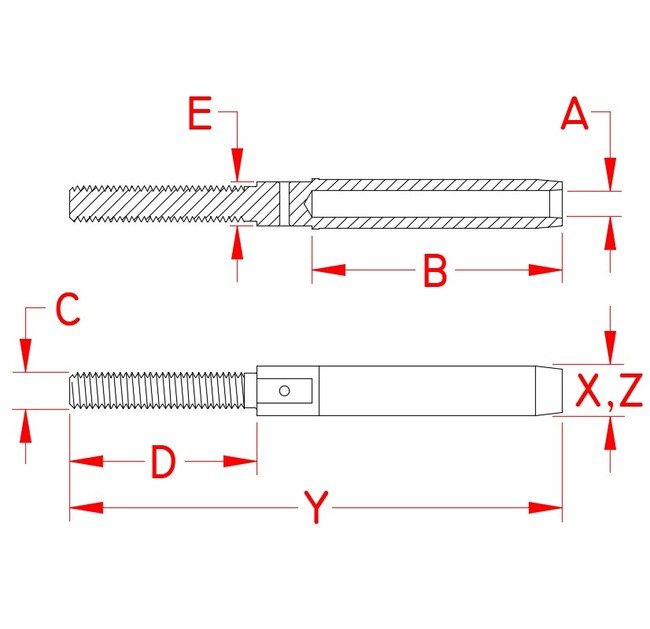

Product Specifications
Specifications Dimension A
1/16 in
Specifications Dimension B
1.04 in
Specifications Dimension C
0.14 in
Specifications Dimension D
1.05 in
Specifications Dimension E
0.16 in
Specifications Dimension X
0.16 in
Specifications Dimension Y
2.47 in
Specifications Dimension Z
0.16 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight
0.01 lb
CAGE
1CXX6
NAICS
332722
PSC
5307
