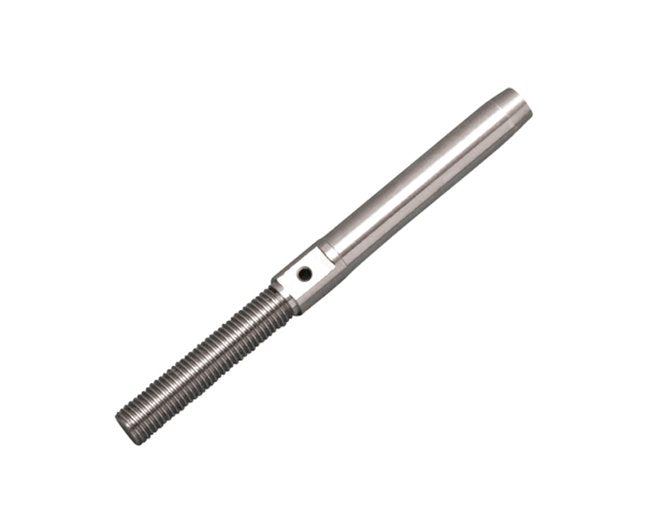

Suncor UNF Right Hand Mil. Spec Swage Stud

Suncor UNF Right Hand Mil. Spec Swage Stud

SKU:MIL-1fc9d3

Premium Suncor UNF Mil. Spec Swage Studs - Precision machined stainless steel studs meeting MIL-DTL-781 & QPL-781 for robust performance.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor UNF Right Hand Mil. Spec Swage Stud

Suncor UNF Right Hand Mil. Spec Swage Stud

$29.99

Quantity: 1

Claim Your Seller Account

Suncor UNF Right Hand Mil. Spec Swage Stud

Suncor UNF Right Hand Mil. Spec Swage Stud

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Suncor UNF Right Hand Mil. Spec Swage Studs are meticulously crafted to meet the stringent requirements of military specification #MS21259, ensuring exceptional quality and reliability for your applications. Compliant with MIL-DTL-781 and listed in QPL-781, these stainless steel swage studs feature precision machining and are available in various sizes from 1/16" to 3/8". Made in the USA, these studs deliver superior performance and durability in demanding environments.

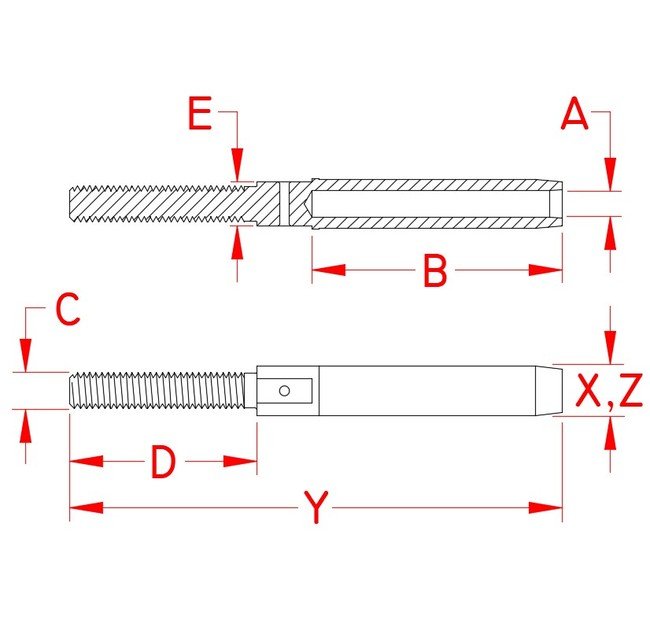

Product Specifications

Specifications Dimension A
3/8 in
Specifications Dimension B
3.51 in
Specifications Dimension C
0.56 in
Specifications Dimension D
2.25 in
Specifications Dimension E
0.69 in
Specifications Dimension X
0.70 in
Specifications Dimension Y
6.66 in
Specifications Dimension Z
0.70 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight
0.5 lb
CAGE
1CXX6
NAICS
332722
PSC
5307
