Suncor Unified National Fine Swage Stud - Mil. Spec Compliant
Suncor Unified National Fine Swage Stud - Mil. Spec Compliant
SKU:MIL-684f63
Meet MIL-DTL-781 compliance with Suncor's Precision-Machined UNF Swage Studs.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Suncor Unified National Fine Swage Stud - Mil. Spec Compliant
$24.99
Quantity: 1
Claim Your Seller Account
Suncor Unified National Fine Swage Stud - Mil. Spec Compliant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

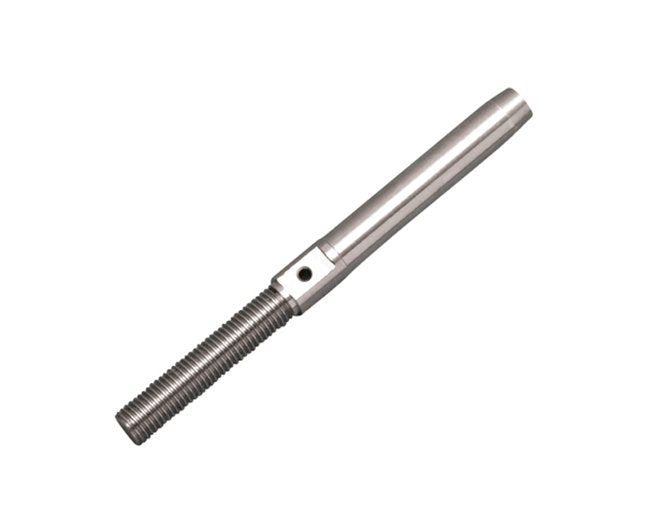

The Suncor Unified National Fine (UNF) Thread Right Hand Mil. Spec Swage Stud is a top-tier terminal that meets stringent military specifications including MIL-DTL-781 and #MS21259. Crafted from high-quality stainless steel, this precision-machined stud boasts dimensions ranging from 1/16" to 3/8", ensuring a perfect fit for various applications. Made in the USA, this Swage Stud guarantees durability, accuracy, and reliability for critical projects.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

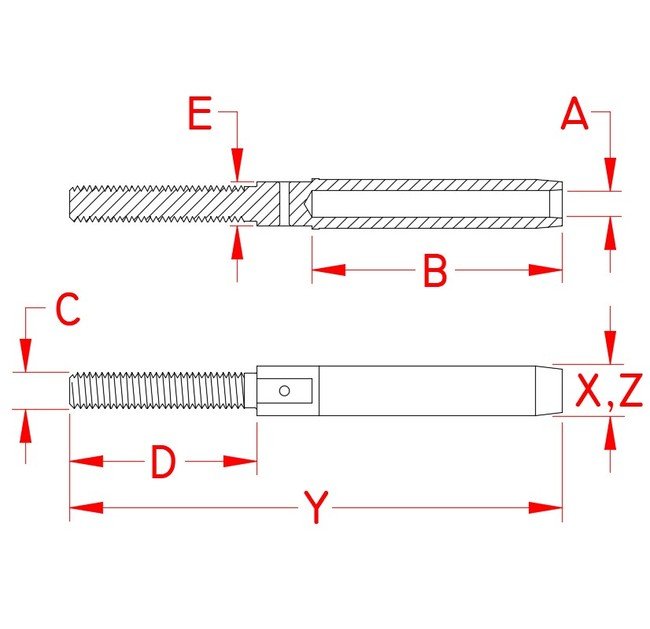

Specifications Dimension A
3/16 in
Specifications Dimension B
2.01 in
Specifications Dimension C
0.31 in
Specifications Dimension D
1.45 in
Specifications Dimension E
0.31 in
Specifications Dimension X
0.36 in
Specifications Dimension Y
4.00 in
Specifications Dimension Z
0.36 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight
0.07 lb
CAGE
1CXX6
NAICS
332722
PSC
5307
