Suncor US Anchor Shackle 316 Stainless Steel
Suncor US Anchor Shackle 316 Stainless Steel
SKU:STA-14a53f
Premium Suncor US Anchor Shackle 316 Stainless Steel with 1,300 lb WLL, ASME B30.26-2010 compliant, ideal for saltwater use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Suncor US Anchor Shackle 316 Stainless Steel
$24.99
Quantity: 1
Claim Your Seller Account
Suncor US Anchor Shackle 316 Stainless Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

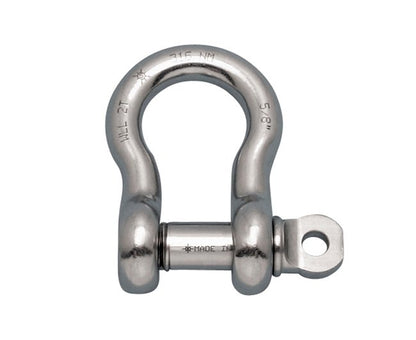

The Suncor US Anchor Shackle is crafted from premium grade 316-NM stainless steel, designed with an oversize screw pin for enhanced durability and reliability. Ideal for saltwater applications, this anchor shackle has a working load limit of 1,300 lb, meeting ASME B30.26-2010 standards and DFARS compliance. Manufactured in the USA, this drop-forged stainless steel shackle is Suncor exclusive, ensuring top-notch quality and performance.
Product Specifications

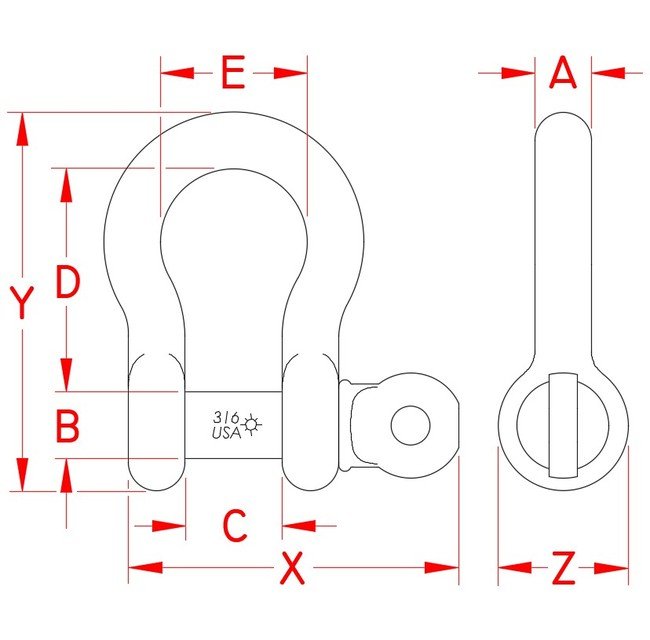

Specifications Dimension A
5/16 in
Specifications Dimension B
0.38 in
Specifications Dimension C
0.53 in
Specifications Dimension D
1.20 in
Specifications Dimension E
0.80 in
Specifications Dimension X
1.84 in
Specifications Dimension Y
2.06 in
Specifications Dimension Z
0.73 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
0.16 lb
Specifications Working Load Limit Wll
1,300 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
